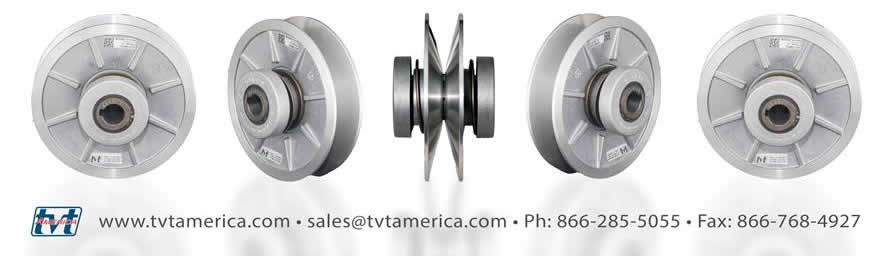

BERGES Fsb Pulley/Belt Drives

  • Symmetrical Pulleys for Wide High Performance

  • Fixed Diameter Drive Pulley.
  • F..sb Centering dual spring tensioning pulley
  •  Distance between shafts change self tensioning F..sb pulley.
  • Speed Range - to 3.2:1 variable.
  • Suitable for Forward & Reversing operations.
  • Power range from 1hp (0.75kw) to 41hp (30kw).
  • Use with TVT Berges adjustable motor bases or your distance fixtures.


Berges F...sb offer high performance in a compact package in a very simple to apply speed variation of exceptional reliability & service life.  To adjust speed, simply change the distance between drive and driven shafts.   The F...sb uses Berges CWb high performance wide variable speed belts for efficient, and trouble free long service life.

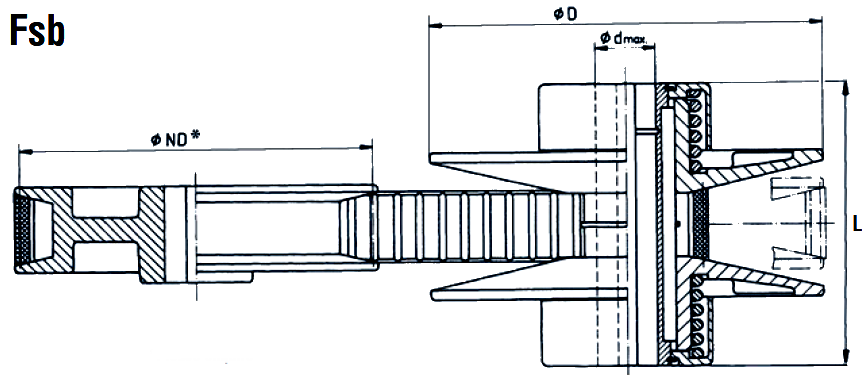

Berges F..sb series pulleys operate on parallel shafts between the Fixed diameter pulley and a double spring tensioning pulley "F...sb".

Model Range Motor RPM Hp Hp Max Hp Min D1 mm L mm Max Bore CWb Belt
F100sb 1:2.3 1656 1 0.93 0.40 120 80 24mm CWb22
F130sb 1:2.6 1656 1 0.93 0.36 135 80 24mm CWb22
F150sb 1:2.5 1692 2 1.88 0.74 159 115 28mm CWb28
F190sb 1:3.2 1692 2 1.88 0.60 190 115 28mm CWb28
F210sb 1:2.7 1704 4 3.75 1.67 220 148 38mm CWb37
F235sb 1:3.2 1704 4 3.75 1.39 236 148 32mm CWb37
F250sb 1:2.7 1716 5.6 5.00 2.08 255 170 42mm CWb47
F280sb 1:2.9 1740 10 9.31 3.06 296 190 42mm CWb55
F325sb 1:2.8 1740 15 13.75 6.39 346 240 48mm CWb70
F350sb 1:2.7 1752 25 23.06 9.72 346 240 55mm CWb72
F400sb 1:2.7 1770 40 37.5 15.83 400 300 65mm CWb83

The drive pulley operates at Motor RPM will drive the F..sb tensioning pulley through the speed range by changing of center distances between the drive and driven pulleys.  These center distances can be adjusted by TVT Berges adjustable motor bases, "piggy back" motor over gearbox mounts where motor height can be adjusted thus changing center distance, as well as OEM or customer fabricated shaft center distance changing devices.

The design life of a Fsb type pulley is exceptional, belt inspection is very easy, and after a long trouble free service life an old CWb belt can be changed for a new CWb type belt in minutes.   Berges Belt & Pulley adjustable speed drive systems are used in critical applications and remote location applications for their exceptionally straightforward maintenance and long service life.  Simple, reliable, and strait up performance is often the reason a Fsb type pulley is employed.  The Berges pulley systems are not the cheapest means to vary speed, but is a preferred drive system for machines that must work reliably.  Mechanical variable speed is where TVT America leads all in power transmission, and the F...sb is one very important solution in our offering.

Please call us Toll Free for assistance in your purchase. 866.285.5055 ext 2.

Click Catalog Selection for PDF
