BERGES RD..b Pulley/Belt Drives

  • TORQUE LIMITING CAM (TLC)
  • Symmetrical Pulleys for wide V-Belts
  • R..b Adjusting Variable Pulley on driving shaft.

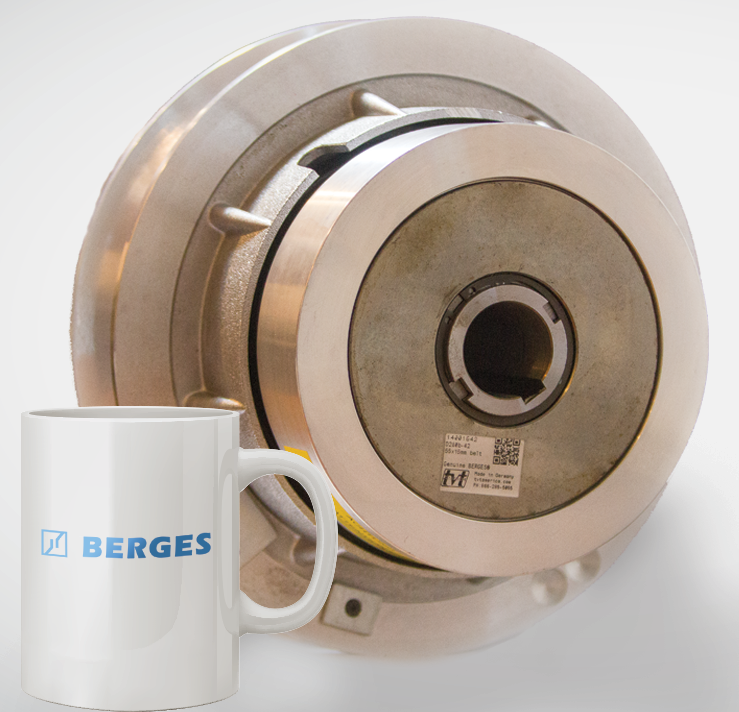

  • D..b TLC Tensioning Pulley on driven shaft
  • Constant distance between shafts & Constant Tension.
  • Wide Speed Range - to 8.5~1 variable.
  • Suitable for Forward operations ONLY.
  • Power range from 10hp (7.5kw) to 225hp (160kw).
Berges RD..b series offers exclusive TLC feature which is a torque dependent control cam in addition to the pressure springs to absorb intermittent overloading or torque peaks.  The D Tension pulley  operates as a spring pulley up to nominal power, beyond this the TLC regulates the pulley as a fixed drive.  RD..b are Superior in protection against overloading.

* Due to the TLC's faction, only single direction rotation is suitable.

Stocked/Standard bores are shown, other bore diameters available on request.
Price Listed Reflect Industrial Pricing -STOCKING Distributor & OEM Prices are quoted based on volume.

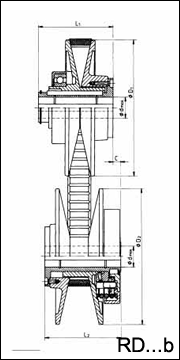

Model Bore  Dia. d D L Model Bore Dia. d D1 L Belts for pulleys RF..b
R210b
24mm 220 122
D210b
24mm 220 135
CW-b37x10
28mm 28mm
38mm 38mm
R235b
24mm 236 122
D235b
28mm 236 135
CW-b37x10
28mm 38mm
38mm 42mm
R280b
28mm 296 162
D280b
28mm 296 182
CW-b55x15
38mm 38mm
42mm 42mm
R350b
38mm 346 195
D350b
38mm 346 215
CW-b 70x18
42mm 42mm
48mm 48mm
R400b
55mm 372 220
D400b
55mm 420 250
CW-b83x23
60mm 60mm
65mm 65mm

Please call us Toll Free for assistance in your purchase. 866.285.5055 ext 2.

Click Catalog Selection for PDF

  Berges RD..b Documentation
