Lenze 11.213 Replacement BERGES RF..b Pulley/Belt Drives |
 |
 |
|

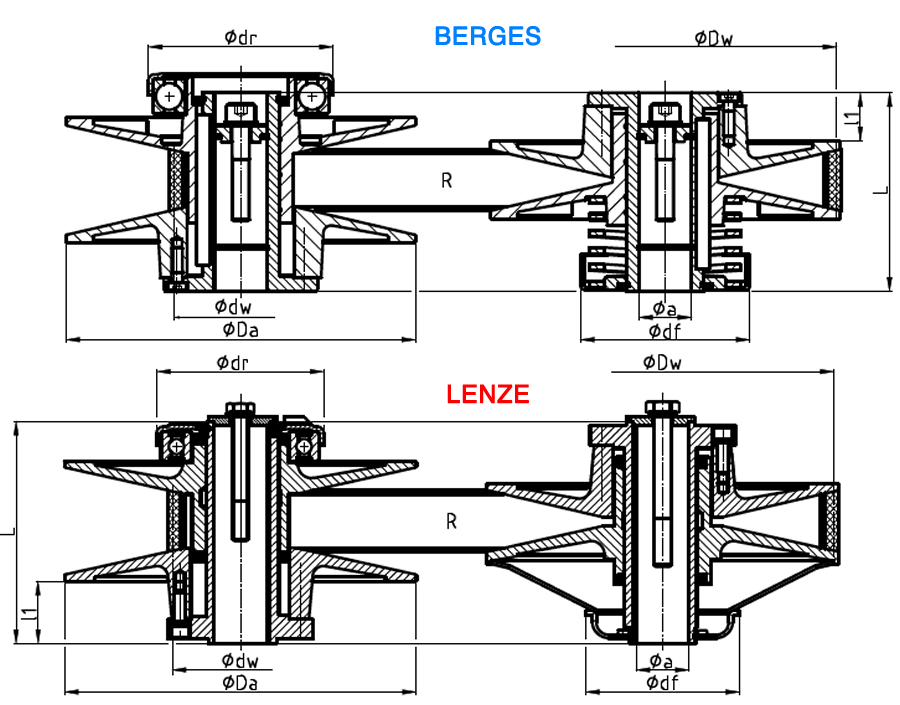

| Lenze to Berges Control Pulleys | |||||||||
| Brand | Type | a* | Da | dw | Dw | dr | L | I1 | Belt |
| Lenze | 11.213.10.910 | 14 | 102 | 41 | 99 | 59 | 65 | 20.2 | CW-B 14 |
| Berges | R080b | 11-14 | 91.4 | 38 | 90 | 55 | 50 | 11.9 | CW-B 17 |
| Lenze | 11.213.13.910 | 14-19-24 | 130 | 54 | 127 | 79 | 95 | 30.5 | CW-B 22 |
| Berges | R100b | 120 | 49.5 | 118.5 | 72 | 72 | 18.8 | CW-B 22 | |
| R130b | 135 | 133.5 | 17.9 | ||||||
| Lenze | 11.213.16.910 | 19-24-28 | 160 | 62 | 156 | 95 | 110 | 33 | CW-B 28 |
| Berges | R150b | 159 | 61 | 84 | 90 | 21.8 | |||
| Lenze | 11.213.20.910 | 24 - 28 | 205 | 77 | 200 | 100 | 130 | 36 | CW-B 37 |
| Berges | R210b | 24-28-38 | 220 | 79 | 217 | 122 | 30.6 | ||
| R196b | 19-24-28 | 198 | 69 | 196 | 84 | 110 | 27.7 | CW-B 33 | |
| Lenze | 11.213.25.910 | 28-38-42 | 252 | 94 | 243.5 | 120 | 160 | 43.5 | CW-B 47 |
| Berges | R250b | 255 | 90 | 250 | 116 | 145 | 36.1 | ||
| Lenze | 11.213.31.910 | 38-42-48 | 315 | 118 | 307 | 155 | 196 | 56 | CW-55 |
| Berges | R300b | 305 | 110 | 300 | 146 | 185 | 49.6 | ||
| Lenze Simplabelt variable speed
belt drives as well as Lenze "Compensator" GST variators are happy to
find the TVT-Berges can replace the 11.213.. series belts & pulleys with
high quality German made Berges RF...b series pulleys and CW-B high
performance metric Variable Speed belts. The above table
interchanges the Lenze 11.213 Control Pulleys for wide v-belt drives, as
the table below interchanges the 11.213 Spring Tensioning pulley for
wide v-belt drives to the Berges F...b series. Replacing Lenze Simplabelt with a high quality, German Manufactured BERGES pulley is a no compromise service & performance interchange. Links in BLUE will connect you to the stock standard pulleys in our table below, bore sizes not listed are often availble made-to-order in a reasonable amount of time & price. |
| Lenze to Berges Spring Tension Pulleys | |||||||||
| Brand | Type | a* | Da | dw | Dw | dr | L | I1 | Belt |
| Lenze | 11.213.10.920 | 14 | 102 | 41 | 99 | 59 | 65 | 20.2 | CW-B 14 |
| Berges | F080b | 11-14 | 91.4 | 38 | 90 | 55 | 50 | 11.9 | CW-B 17 |
| Lenze | 11.213.13.920 | 14-19-24 | 130 | 54 | 127 | 79 | 95 | 30.5 | CW-B 22 |
| Berges | F100b | 120 | 49.5 | 118.5 | 72 | 72 | 18.8 | CW-B 22 | |
| F130b | 135 | 133.5 | 17.9 | ||||||
| Lenze | 11.213.16.920 | 19-24-28 | 160 | 62 | 156 | 95 | 110 | 33 | CW-B 28 |
| Berges | F150b | 159 | 61 | 84 | 90 | 21.8 | |||
| Lenze | 11.213.20.920 | 24 - 28 | 205 | 77 | 200 | 100 | 130 | 36 | CW-B 37 |
| Berges | F210b | 24-28-38 | 220 | 79 | 217 | 122 | 30.6 | ||
| F196b | 19-24-28 | 198 | 69 | 196 | 84 | 110 | 27.7 | CW-B 33 | |
| Lenze | 11.213.25.920 | 28-38-42 | 252 | 94 | 243.5 | 120 | 160 | 43.5 | CW-B 47 |
| Berges | F250b | 255 | 90 | 250 | 116 | 145 | 36.1 | ||
| Lenze | 11.213.31.920 | 38-42-48 | 315 | 118 | 307 | 155 | 196 | 56 | CW-55 |
| Berges | F300b | 305 | 110 | 300 | 146 | 185 | 49.6 | ||
| Stocked/Standard bores are shown, other bore diameters available on request. |
| Price Listed Reflect Industrial Pricing -STOCKING Distributor & OEM Prices are quoted based on volume. |
|
Please call us Toll Free for assistance in your purchase. 866.285.5055 ext 2. |
| Model | Bore Dia. d | D | L | Model | Bore Dia. d | D1 | L | Belts for pulleys RF..b |
| 11mm | 91.4 | 50 | 11mm | 91.4 | 50 |
CW-b17x6 | ||
| 14mm | 14mm | |||||||
| 14mm | 120 | 72 | 14mm | 120 | 72 |
CW-b22x7 |
||
| 0.625" | 0.625" | |||||||
| 19mm | 19mm | |||||||
| 0.875" | 0.875" | |||||||
| 24mm | 24mm | |||||||
| 14mm | 135 | 72 | 14mm | 135 | 72 |
CW-b22x7 |
||
| 0.625" | 0.625" | |||||||
| 19mm | 19mm | |||||||
| 0.875" | 0.875" | |||||||
| 24mm | 24mm | |||||||
| 19mm | 159 | 90 |
|
19mm | 159 | 90 |
CW-b28x8 |
|
| 0.875" | 0.875" | |||||||
| 24mm | 24mm | |||||||
| 1.125" | 1.125" | |||||||
| 28mm | 28mm | |||||||
| 19mm | 191 | 110 | F196b | 19mm | 191 | 110 |
CW-b33x10 |
|
| 0.875" | 0.875" | |||||||
| 24mm | 24mm | |||||||
| 1.125" | 1.125" | |||||||
| 28mm | 28mm | |||||||
| 24mm | 220 | 122 | 24mm | 220 | 122 |
CW-b37x10 |
||
| 28mm | 28mm | |||||||
| 38mm | 38mm | |||||||
| 28mm | 255 | 162 |
|
28mm | 255 | 162 |
CW-b47x12 |
|
| 38mm | 38mm | |||||||
| 42mm | 42mm | |||||||
| 38mm | 305 | 185 |
|
38mm | 305 | 185 |
CW-b51x16
|
|
| 42mm | 42mm | |||||||
| 48mm | 48mm |
