L03 DC Linear Actuator

		MecVel Srl linear actuator L03 DC
			Max Force: 5000 N	1123 lbs-F
			Max Speed: 30 mm/s	1.18 in/s
			Stroke: to 700 mm	27.6 in
			Motors: 12 or 24 Vdc
Downloads:		Permanent Magnet Motor 12 or 24 Vdc Planetary Reduction (ALI5-PB) ACME lead screw or Ball Screw (VRS) Chrome Plated Steel Push Rod Grease Lubricated - Maintenance Free. IP65 Standard Temperature range -10 to 60C, 14 to 140 F Intermittent Duty (S3) 5 min at 30C. Encoder (optional) Limit Switches (optional) Special Features not listed... contact TVT.	Accessories: Magnetic Limit Switches, Encoder
	Maintenance & Use Handbook

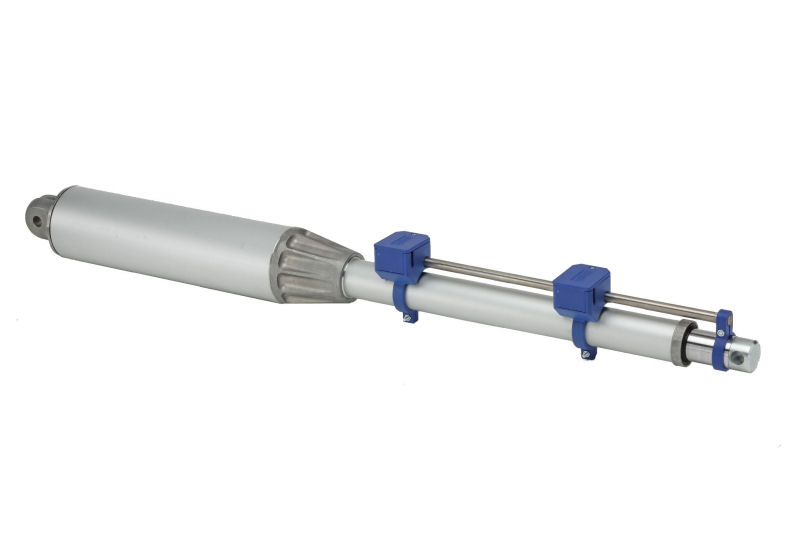

	Catalog L03 DC		L03-FCE-DC shown below
	CE Certificate

DXF Files:
	L03
	L03-FCE
	L03-FCM
	L03-Ball Screw
	L03-Front Ends
	L02-L03 Antirotation
	L03-Ball Screw FCE
