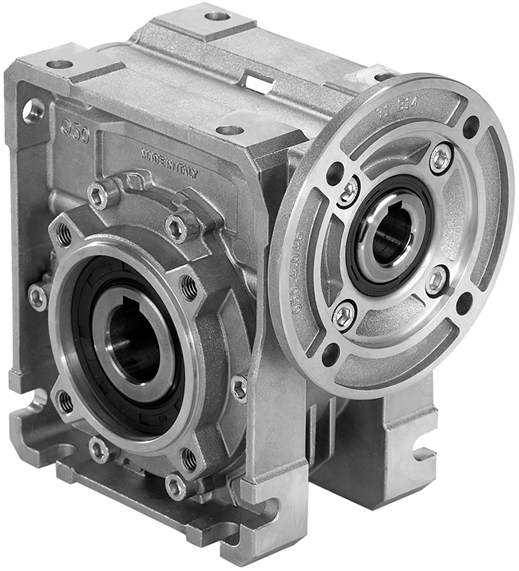

TVT Q Universal Nema Wormgear Reducer |
||
| 100% Designed & Manufactured in Italy. Stocked & Assembled in U.S.A. for fast delivery & service. |
 |
Worm shaft cut to a computer designed high helix angle for ideal efficiency, then case hardened to Rc 58-60 and ground to assure strength and silence over a long life. |
| High Strength & fin free housing that dimensionally interchanges out other Italian design gearboxes. | NEMA Flange & input quill bore. | |
| Double lip and fully rubber encased Nitral output seals STANDARD. | Alloy Bronze worm wheel cast over a engineered cast iron hub for high strength and long service life. | |
| SIngle & Double side Unishafts available in Metric and inch dimensions. | Electric motor grade bearings oversized for higher radial loads and large output shaft diameters. | |
| Inch and metric output bores ideal for IEC to NEMA motor conversions available. | Precision machined bearing caps that allow a wide variety of options and mounting capabilities with zero leaks. | |
| Available options: Stainless Steel bore, Stainless Hardware, Epoxy Paint (multiple color options), food lube, gearmotor and more. |
| Four stocked Sizes | Torque | Output Bore/Shaft | Input(s) | RATIOS |
|
45 |
345 in-lbs | 0.750" | NEMA 56C | 7, 10, 14, 21, 28, 37, 46, 60, 70, 102 |
|
50 |
611 in-lbs | 1.00" | NEMA 56C | 7, 10, 14, 18, 26, 30, 36, 43, 50, 60, 68, 80, 100 |
|
63 |
1240 in-lbs | 1.125" | NEMA 56C & 143/145 | 7, 10, 15, 19, 24, 30, 36, 40, 45, 60, 67, 80, 94 |
|
85 |
2921 in-lbs | 1.500" | NEMA 56,143,145,182,184TC | 7, 10, 14, 20, 22, 28, 38, 46, 52, 67, 74, 96 |
| Available Documentation | NEMA-Q TVT CATALOG | 5594kB pdf |
Please click above link to download Pdf Catalog.
For CAD files, contact engineering@tvtamerica.com for assistance.
