| TN160L Series dimensions B3, B5, and B14. | ||
|
|
||

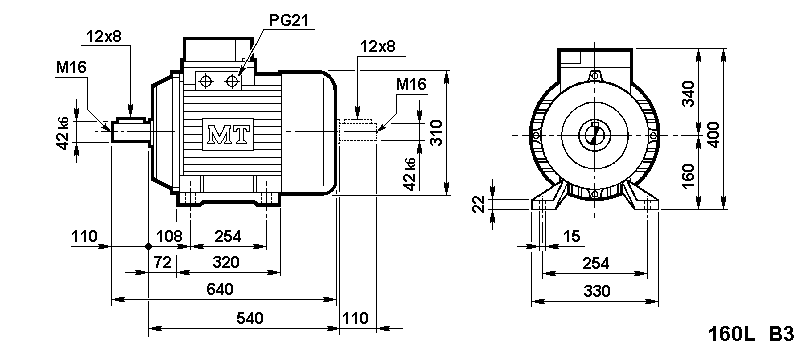

| Dimensions for TN160L..B3 Frame motors from MT Electric S.r.l. | ||
 |
||

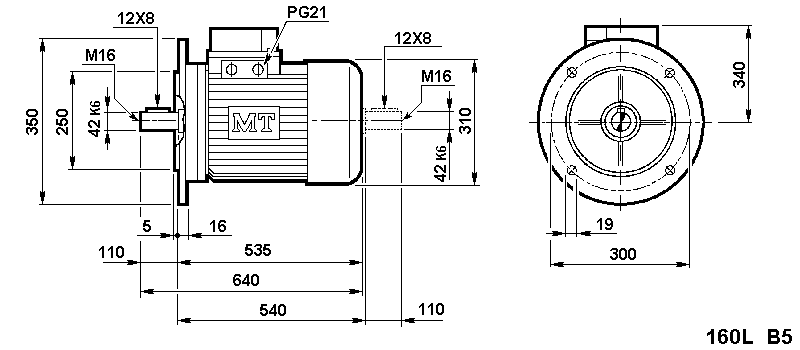

| Dimensions for TN160L.l.B5 Frame motors from MT Electric S.r.l. | ||
|
Sorry B14 Frame Not Available in this size. |
||
| Dimensions for TN160L..B14 Frame motors from MT Electric S.r.l. | ||
