| TN71 Series dimensions B3, B5, and B14. | ||
|
|
||

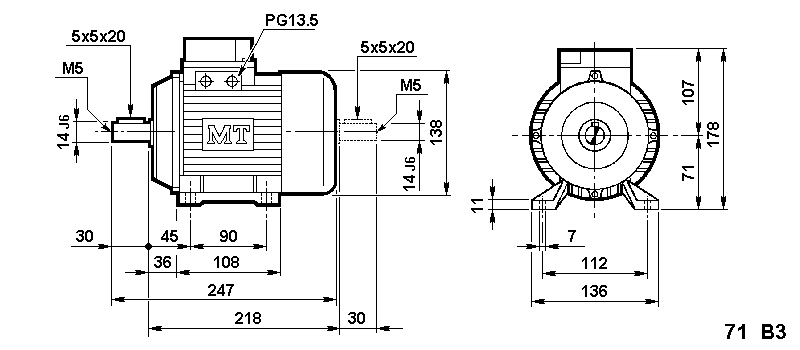

| Dimensions for TN71..B3 Frame motors from MT Electric S.r.l. | ||
 |
||

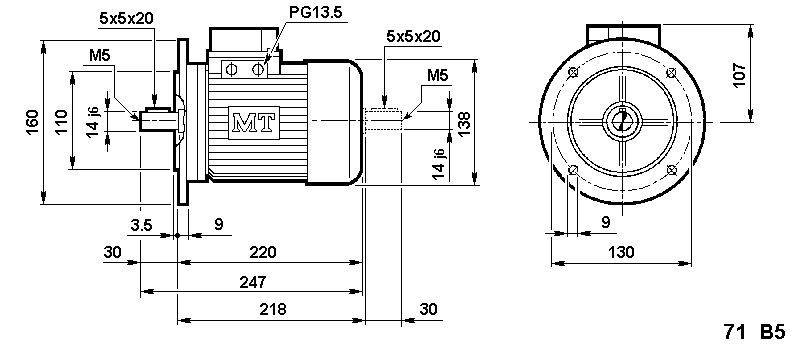

| Dimensions for TN71..B5 Frame motors from MT Electric S.r.l. | ||
 |
||

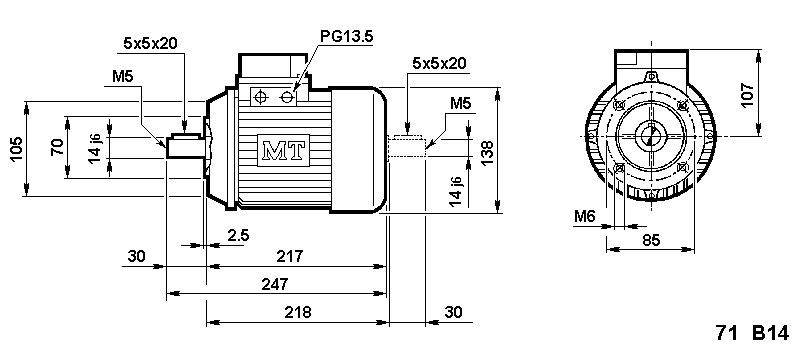

| Dimensions for TN71..B14 Frame motors from MT Electric S.r.l. | ||
 |
