TVT-Drives
VFD Inverters Variable
Frequency |
|
|
 |
|

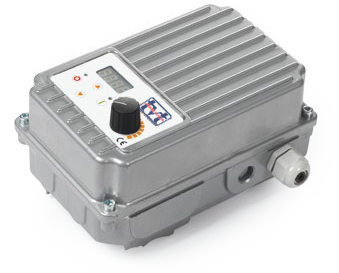

TVT D1-230V |
|
230V Single Phase Input |
|
230V Three Phase Output |
|
Power 0.1 to 2.2Kw (to 3hp) |
|
Control Method - Volts/Hz high
resolution synchronous pwm |
|
EMC Filter - Class A Category C3 |
|
Communications - ModBus RS485 |
|
Ingress Protection - IP66
NEMA 4/12 |
|
Application Strengths |
|
Low Cost |
|
Reliable |
|
Motor,
Machine, or Wall mountable |
|
Download Catalog pdf |
|
|
|
|
|
|
|
TVT D2-460V |
 |
|
400-500V Three Phase Input |
|
400-500V Three Phase Output |
|
Power 0.75 to 3.7Kw (1 to 5hp) |
|
Control Methods - V/Hz, Sensorless
Vector, Brushless Sensorless or Brushless Sensorted |
|
EMC Filter - Class A Category C3 |
|
Braking Module - Integrated |
|
Communications - ModBus RS485 |
|
Ingress Protection - IP55
NEMA 4/12 |
|
Application Strengths |
|
Low Cost |
|
Reliable
|
|
Motor, Machine, or
Wall mountable |
|
Download Catalog pdf |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Inveor -
Alpha |
 |
|
100 to 230V Single Phase Input |
|
230 Three Phase Output |
|
Power 0.25Kw to 0.75Kw (.33 to 1hp) |
|
Control Methods - V/Hz, Sensorless
Vector, Sensored Vector |
|
EMC FIlter - Integrated Class A C2 |
|
Braking Module - Integrated |
|
Communication Protocols CANopen,
ProfiBus, etherCAT, ProfiNet, Modbus RTU, Sercos. |
|
Ingress Protection - 65 (NEMA
4/12) |
|
Application Strengths |
|
Integrated PLC (Soft
PLC) |
|
Exceptional finish &
function (12V & 24Vdc i/o). |
|
Interface with HMI,
PLC, PC, multiple control modes. |
|
Motor, Machine, or
Wall Mountable. |
|
Visit Inveor Page for Catalog, Manual, and Software Downloads |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

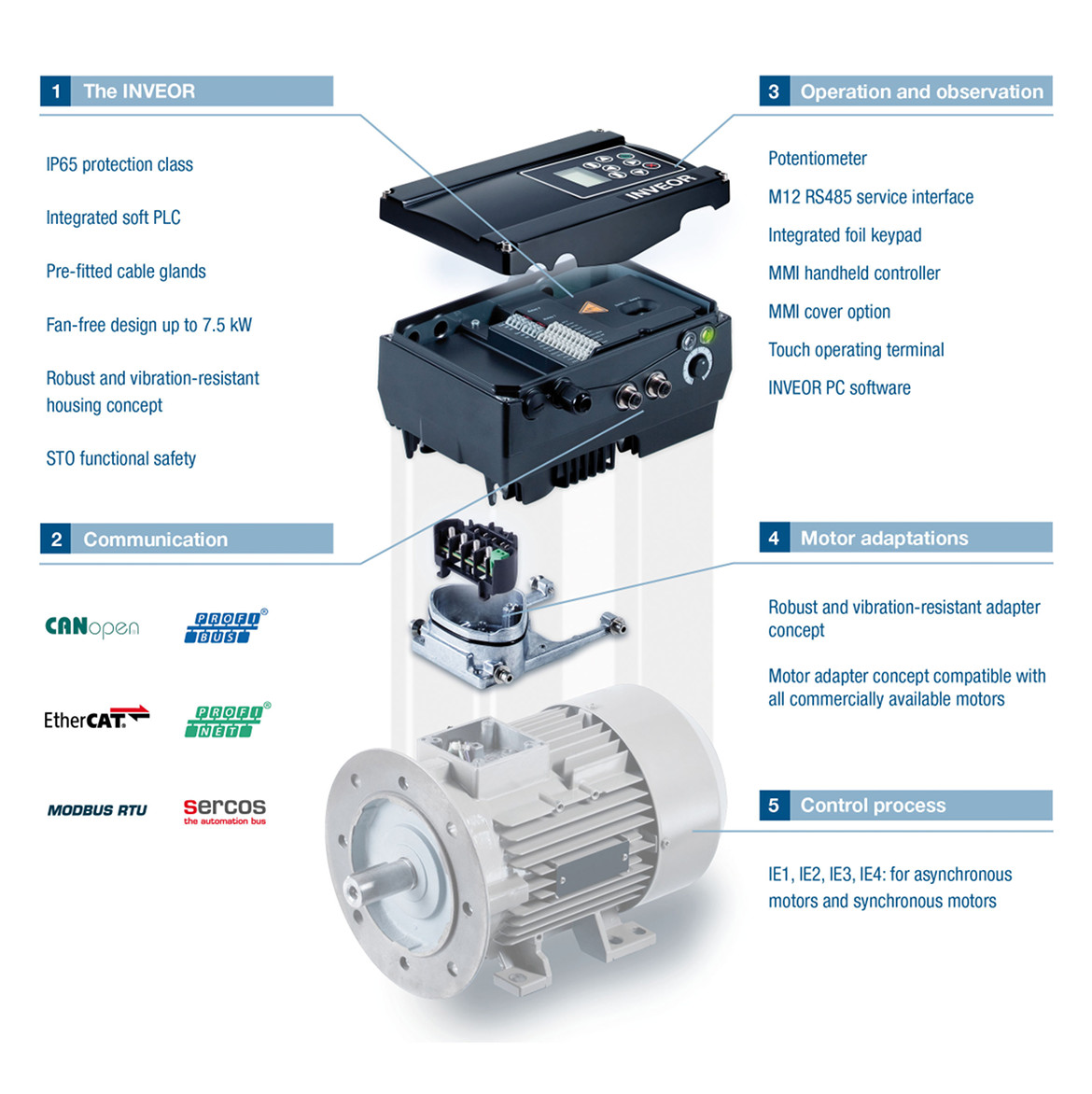

Inveor - M |
|
200 to 500V Three Phase Input |
|
200 to 500V Three Phase Output |
|
Power 0.25 to 22Kw (0.33 to 30Hp) |
|
Control Methods - V/Hz, Sensorless,
Sensored |
|
EMC FILTER - C2 |
|
Braking Modele - Chopper included |
|
Communications Protocols - CANopen,
ProfiBus, etherCAT, ProfiNet, Modbus RTU, Sercos. |
|
Ingress Protection - 65 (NEMA
4/12) |
|
Application Strengths |
|
Best mounting
system in Industry. |
|
Integrated PLC
(Soft PLC) |
|
Superior Finish
& Function to everything else in the market. |
|
Interface with
multiple HMI, MMI, PLC, PC, and more. |
|
Motor, Machine,
or Wall Mounted. |
|
Fan Free &
Compact in Size due to high efficiency (little heat). |
|
Visit Inveor
Page for Catalog, Manual, and Software Downloads |
|
I |
|
|
 |
 |
|

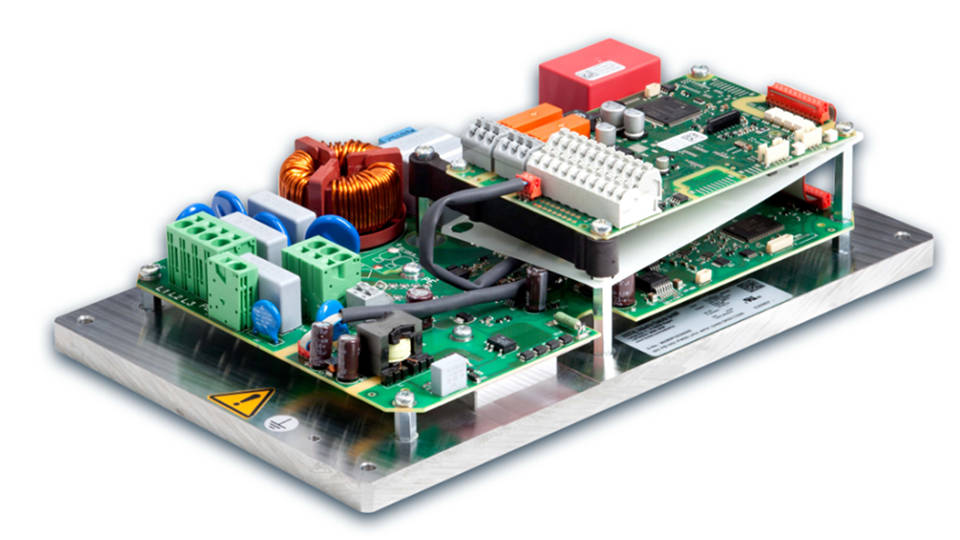

The Inveor is also available in a
plate mounted IP00 version for O.E.M. application.
Exceptionally compact size,
quality, and capability can be integrated into your machine with the
Inveor series P (plate). F |
|
From TVT the O.E.M. can source a
turn-key control-drive solution from software to gear reducer
specifically designed to meet and hopefullly exceed your expectations.
|
