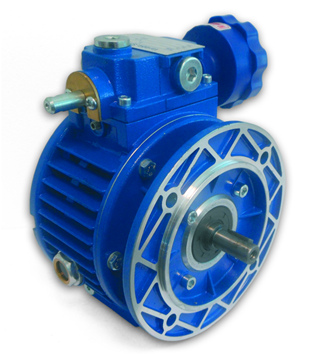

UDL Series - Mechanical Speed Variator "Disc type" fluid traction drive. LOW COST

Tramec UDL Disc type mechanical variators operation is based on an epicyclic transmission that provides infinitely variable ratio, with output speeds between 76% and 12% of motor speed while multiplying torque proportional to speed reduction at efficiencies averaging 84%.  The machine designers appreciate this simple, low cost, low maintenance, reliable compact little speed variator, and use it in seemingly endless ways to vary speed and manipulate torque.  The UDL is a no-frills, low cost variator that works.

  • Sizes 003 to 10 Housings & Motor Flanges of aluminum, finished inside & out in polyester epoxy blue RAL5010.

  • 6~1 variable speed range.

  • Epicyclical transmission design, quiet, smooth, and efficient transmission of torque.

  • Bearings ISO Precision Metric ball bearings of 52100 vacuum degassed steel.

  • Lubrication - Easy to find and reasonably priced Dexron II Automatic Trans fluid.

  • Easy to view "Fish-eye" type oil sight glass standard.

  • Replaces those long lead time, over priced offerings from "others".

  • Replaces Bonfiglioli, V0.25F63 D11 P63, V0.50F71 D14 P71, V1F80 D19 P80

  • Direct replacement for Motovario TXF002, TXF005, TXF010.

  • Interchange to replace SITI MK2, MK5, MK10

  • Available from stock in Branson, MO USA.
