high speed gear coupling nylon teeth and steel bushing from Tramec s.r.l.

	GN Series - Elastomeric Coupling with Nylon Sleeve.

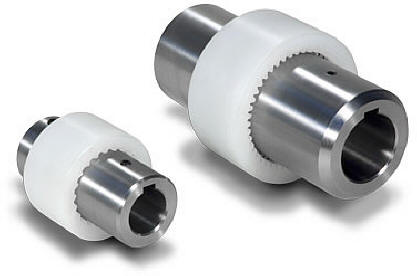

	GN Couplings are made from two crowned tooth steel gear bushings and are connected by a nylon sleeve with internal gear teeth. An internal sna[ ring in the center of the nylon sleeve prevents axial displacement. Our couplings are stocked in several standard sizes to match motor to reducers, and are excellent for transmitting moderate torques between motors and reducers at high speeds. The maximum temperature for GN Couplings is 158 F (70 C).

	Documentation

	GN series catalog														78 KB

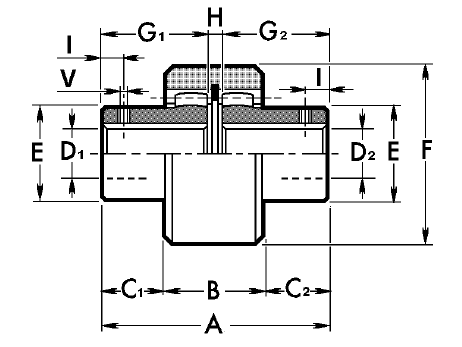

	Type	T2 In-lbs	Hp 1750	A	B	C1	C2	D1	D2	E	F	G1	G2	H	I	V	Lbs
	GN14	71	2	64	30	18	18	14	14	26	42	30	30	4	10	M5	0.6
				57			11		11				23		6	M4
	GN19	159	4.7	84	32	26	26	19	19	33	52	40	40	4	15	M5	1.1
				74			16		14				30		10	M5
	GN24	248	7.2	105	36	34.5	34.5	24	24	40	62	50	50	5	20	M6	1.5
				95			24.5		19				40		15	M5
				85			14.5		14				30		10	M5
	GN32	443	12.6	125	40	42.5	42.5	28	32	46	72	60	60	5	13	M8	3.1
				125			42.5		28				60		24	M6
				115			32.5		24				50		19	M6
				105			22.5		19				40		14	M6
	GN42	1549	44.8	226	45	90.5	90.5	42	42	63	92	110	110	6	48	M8	8.8
				196			60.5		38				80		33	M6
				176			40.5		28				60		22	M6
				166			30.5		24				50		18	M6
	GN60	2876	83.3	288	60	114	115	60	60	80	122	140	140	8	62	M10	11.0
				258			84		55				110		47	M10
				258			84		48				110		47	M10
				258			84		42				110		47	M8
				228			64		38				80		32	M8
				208			34		28				60		32	M6
* dimensions in millimeters
