MN-XN Series - Single Polarity 1 phase IEC Motors

Get Catalog

Electric Motor IEC Type MT B5 Flange style TN   100% Italian Design & Manufacture
MN and XN Series from MT Electric Motors S.r.l. is our single speed, single phase, electric motor for applications requiring a combination of quality, price, and performance in an IEC B3, B5, or B14 motor made in our state of the art facility in San Giovanni in Persiceto, Bologna, Italy.  All MT motors are feature rich, high quality, light weight, and made-to-suit our customers most demanding applications. To this the MN and XN add the ability to operate from 120 ro 230V AC 50/60hz power.

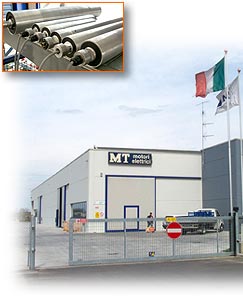

MT production in San Giavanni in Persiceto, Bologna, Italy

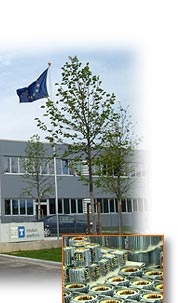

Offices of M/T motori elettrici, Via Bologna 175, san giovanni in persiceto, bologna, italy  400`7

  • 56A to 100B frame sizes.
  • MN standard starting torque.
  • XN 200% starting torque, up to once every 9 sec.
  • Symmetrical winding for both direction operation without stopping motor (optional).
  • B3, B5, B14, B3/B5, B3/B14 standard.
  • 230V 50/60hz, 120V 50/60hz, single phase
  • 0.12 to 3 hp (0.09 to 2.2kw)
  • 2, 4, and 6 pole versions standard.
  • Reduced size output flanges available B14, B5
  • CL-F standard, CL-H optional.
  • Double Output Shaft optional
  • Special voltage ratings available.
  • Thermal protection optional.
  • Tropical proof winding optional.

Electric Motors MT, Motori Elettrici M/T

  • Housings & End covers of high strength vacuum die-cast aluminum.
  • Cooling fans are bi-directional of high impact engineered plastics
  • Fan shrouds in polyester epoxy powder painted RAL Blue, or Zinc Plated steel.
  • Dimensions & Construction conforming strictly to IEC, UNEL, & CEI specifications.
  • Wire is double coated Essex Class H grade as standard.
  • Insulation Class F with no extra charge, Class H insulation (180 C) optional.
  • High quality screw-down clamp terminal strip within diecast two-piece terminal box.
  • Phase separators standard.
  • Magnetic Metal sheets standard
  • Suitable for 50 or 60 hz operation.
  • NSK or SKF Electric Motor Quality ISO bearings.
  • UNI EN ISO 9001:2000 production.
  • ATEX 94/9 CE Zone 2-22
  • UL 1004 Certificate - CSA C22.2 NR. 100-95
  • IP 55 (protection from dust, protection from water nozel of any direction) standard.
  • IP-66 or 67 available upon request.
  • 100% Italian design & manufacture - No extra cost, it is our passion.

  Documentation MN-XN Series

Click Catalog Selection for PDF

Technical Specifications 146Kb
>          >          >          >          >        >        >        >        >      >      >      >      >      >      >   >   >   >   >   >   >   >   >   > > > > > > > > > > > >>>>>>> > > > > > > >   >   >   >   >   >   >   >      >      >      >      >        >        >        >        >        >          >          >          >          >               >               >               >                    > Dimensions 97Kb
