REP Series Planetary Precision Servo Gearhead

The planetary gearbox REP delivers an outstanding combination of competitive price and high quality in a high precision gearhead.   REP is a leader in the following Industries:
  • Machine Tools
  • Wood working equipment
  • Transfer machines
  • Print & Bindery Equipment
  • Packaging Machinery
  • High Speed Manufacturing Equipment
  • Robotics
  • Silk Screen Process Machinery
  • Micro-Chip pick & place systems.
  • Aerospace & Defense
NEMA or IEC

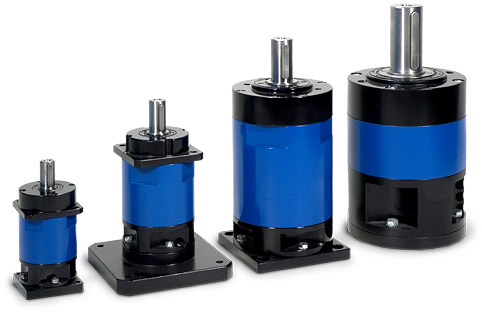

REP is available in 4 sizes (075, 100, 125, and 150), 1, 2, or 3 reduction stages, numerous output & input configurations to suit nearly every need.  Modular design assures fast delivery for 1 piece or many.
  • Housing: Nitrided Steel for a strong, long, corrosion resistant life.
  • Flanges: Input & Output flanges of high strength aluminum alloy.
  • Shaft: Hardened, Tempered, & Ground Steel.
  • Gears:  Case Carborized, quenched, and ground steel.
  • Bearings: Precision Manufactured of 52100 Vacuum Degassed Steels.
  • Tested for Noise, backlash, fit, and finish 100% S.P.C. ISO 9002.
  • T2N = 230 to 5045 in-lbs
  • i = 3 to 343/1, 3 ~ 7<4 arc min, 9 to 49 < 6 arc min, 36 to 343 < 8 arc min backlash.
a Documentation REP Series

Click Catalog Selection for PDF

 Designation 79 KB
