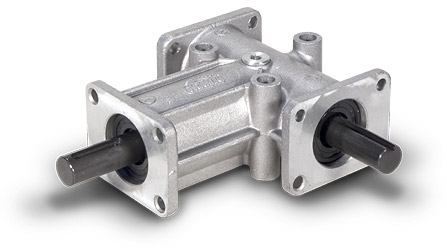

RL Series Spiral Bevel Right Angle Reducer - Automation Miter Gears

Product of Bologna, Italy where Italian masters began a tradition over 500 years ago, and our passion continues today.

RL Series is the workhorse in the automatic equipment world for 24 hour/day production.  Easy to mount on five sides, 1:1, 1:2, and 2:1 ratios, with two or three shafts and several orientations.  Quiet, precise, and reliable Gleason spiral bevel gearsets assure long life and high performance. Six sizes are available to suit your needs in a compact, maintenance free, ready to use package.

  • Automated machinery.
  • Packaging machinery requiring long life, low noise, and leak free performance.
  • Drive for linear actuators, actuator requiring right angle input gear.
  • Printing & binding machinery demanding miter gear orientation.
  • Precision machinery demanding long life and low maintenance gearboxes.
  • Replaces Siti R, and STM ZL series Right Angle Miter gears.
  • Textile Machines .
  • Material Handling Equipment
  • Specialty machines.
  • Cartoning systems for beverage case cartoning automatic machines.
  • Pallet & shrink wrap systems.
These RL series is used around the world in many applications.  These are light weight and compact, yet surprisingly powerful (11 hp rated 1/1 fits in your hand, roughly 4" x 5", and weight just 12.5 lbs for size RL34).  The smallest size is the RL31 which is just 2 5/8" x 2 1/2" approximate size with a weight of just 10 ounces... rated at 3000 rpm and 3/4 hp it is amazing.

  • Housing: Single piece aluminum alloy casting with five mounting points and three flanges.
  • Gleason Coniflex(TM) bevel gears with localized contact to ensure maximum load capacity in forward or reverse.
  • Gear material of Nickel-Chrome steel that is case hardened for high surface hardness and ductile & resilient core.
  • Tested for Noise, backlash, fit, and finish. ISO 9002 production.
  • Backlash of <5 arc min is available on request for right angle servo and stepper applications requiring precision.
  • Synthetic lubricated for long, maintenance free, universal mounted life.
  • Extreme high or low temperature oil and seals are available upon request.
  • 21 to 407 in-lbs output torque (T2N).
  • i = 1:1, 1:2, 2:1 standard ratios.
  • 6 ~ 10 arc min standard backlash, <5 arc minutes available in reduced backlash configuration.
a Documentation RL Series

Click Catalog Selection for PDF
