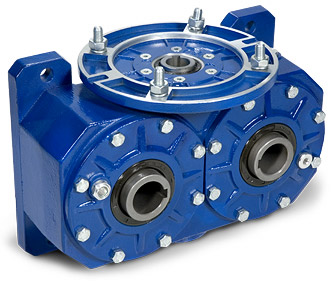

VSF-2USC Series - Double Output Worm Gearboxes
|The solution for twin screw extrusions of cheese or butter, or other machinery requiring two synchronous counter rotating outputs. One IEC C-face or shaft input worm drives two worm wheels, for variable speeds a type N variator is often added for 6~1 variable output with simple turn dial control. This series is reliable, long lasting, and available in four sizes (based on mm between outputs) 135, 150, 170, and 230 and five ratios 7.5, 10, 28, 40 and 80/1. The price for a VSF.2.USC is essentially a little more than the price of two comparably sized worm gear reducers.|
- Housings & Motor Flanges of aluminum, finished inside & out in polyester epoxy blue RAL5010.
- Worm - Machined of alloy steel, hardened & ground.
- Gear - UNI 7013 GcuSn12 Bronze forged over UNI 5007 G20 cast-iron
- Bearings ISO Precision Metric Tapered roller bearings of 52100 vacuum degassed steel.
- Lubrication - Reducers are supplied with the proper amount of High Performance SCH634 Synthetic gear lube formulated for improved worm-gear efficiency & life. However, we can supply reducers dry at clients request.
- Easy to view "Fish-eye" type oil sight glass standard.
- Gearmotor, gear-brakemotor, gearmotor-variator, complete drive packages available from TVT's total manufactured solution... local service & support, global reach via TVT Group.
Double output worm gear reducer from Tramec S.r.l. made in Italy.
2095542001 VM170 Tramec Riduttori size
170, worm gear reducer, gearbox with two outputs (double Output).
2850440591 VM230 Gearbox with 2 output
counter rotating, size 230
2093546011 VM135 Small riduttori made in
Bologna, Italy, double output worm gear reducer for cheese, pasta, butter
2094511001 VM150 7.5 200/24 Double output
worm gear reducer.
2094546001 VM150 40 160/19 worm gear
reducer with two output counter rotating synchronous rotation.
