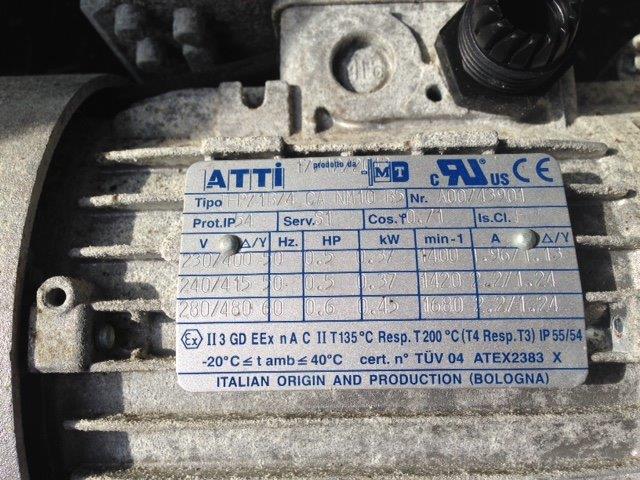

The Above Photo is an MT Motor
private labeled for ATTi, this one is a TFP71B/4 CA NM10 B5. The
series for this motor, TFP can be studied at this page:
LINK TO BRAKE MOTOR PAGE
The TFP is the highest performance brake motor MT produces.
The CA on this nameplate indicates this to be a Alternating Current
Brake (as opposed to CC which is DC current), it is preset to 10NM
torque, and this one is a B5 flange mounting. This motor is a 6
lead Delta/Star wired for 230/400V/50Hz and 440-480V/60Hz is acceptable
voltage. This motor is NOT suited for 208-240V/60Hz power, it will
not perform to ratings on lower than required voltage.
The TVT replacement to this motor, for North American voltage, would be
the TFP71B4 NA CA NM10 B5, would be a YY/Y wired 9 lead motor and AC
brake suited for 208-240V and 440-480V/60Hz North American power.
This motor is also ATEX Ex II 3GS certified, UL/CSA/CE listed suitable
standards for USA, Europe, and Canada respectively. |
| The photo at right
from ATTi is a MT TN71B4 B14. This is a Delta/Star wired 4 pole
motor for voltages 230/400V/50Hz and 280/480V/60Hz. This motor has
Ingress Protection of
55. The motor has insulation system of Class F, and is rated
for S1 service. This nameplate indicates a B14 compact output
flange mount. This motor
is also certified for
ATeX II 3G
Ex nA IIC T4/T3 Gc, an II 3D Ex tc IIIC T135C Dc IP65.
This is a standard European
motor, in North America we stock the 208-240V/440-480V 9 lead motor,
which would be the
TN71B/4 NA B14, all dimensions and performance the same, but 1.15
Service factor at these kW HP ratings due to the higher RPM. |
 |
| For service,
support, and assistance regarding the ATTi Motors, or any other private
labeled motor, please contact our sales department at 866.285.5055
or please e-mail your nameplate & motor photos to
atti@tvtamerica.com.
We can help you select the right motor quickly. |
