Lenze - Simplabelt type 11.104 to Berges F..1sb pulleys

Brand Type Belt a H7 b dw Dw Da L
Lenze 11.104.05.6.1   22x7 14, 19 68 47 117 120 72
Berges F101sb   14,19, 24 64 51 118 120
Lenze 11.104.10.6.1

28x8

 19, 24 80 56 151 155 94
Berges F151sb   19, 24, 28 77 60 156 159
Lenze 11.104.20.6.1   28x8 24, 28 90 64 176 180 108
Berges F181sb   19, 24, 28 77 62 181 184
Lenze 11.104.30.6.1   37x10 28 104 72 215 220 130
Berges F211.37sb   19, 24, 28 98 74 217 220
Lenze 11.104.40.6.1.

47x12

 28, 38 145 94 263.5 270 148
Berges F211.47sb   19, 24, 28 98 74 217 220 130
F250sb   28, 38, 42 106 89 250 255 170
Lenze 11.104.50.6.1   55x15 38, 42 145 98 292 300 180
Berges F281sb   28, 38, 42 106 98.5 292 296
Lenze 11.104.70.6.1   70x18 42, 48 190 121 351 360 220
Berges F325sb   38, 42, 48 147 117 341 346 240

Lenze Simplabelt 11.101 variable speed pulleys can be difficult to find and expensive to obtain, therefore we created an interchange series to replace the Lenze Simplabelt and produced it in Germany at Berges.  Not only are they available, but our pulleys are still made in Germany, of high quality, and at an affordable price.

To replace your Lenze Simplabelt 11.101 series variable speed pulley, simply use the table above to cross reference by Lenze Simplabelt part number OR if the part number is unknown, begin by identifying the belt width, then make selection based on belt with and confirm diameter of pulley, consider also the L dimension, and finally the bore size for your pulley.  A TVT Engineer can assist you in your selection, and confirm your selection.

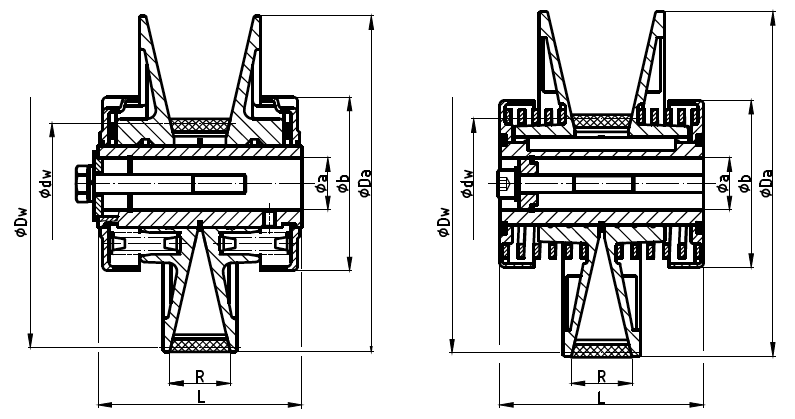

If you wish to see a photo of the Berges replacement to the Simplabelt Lenze pulley, simply click small photo of the pulley above and a larger photo will pop-up on a separate window for your review.

To price or even purchase on-line your Berges F..1sb pulley, simply click on the Berges part number listed in the table to be taken to its on-line pricing & purchasing page.  We offer safe & convenient Google on-line purchasing, but can also offer Paypal, credit card by phone, as well as local purchasing through our over 2500 authorized distributors in North America.

For pricing and dimensional information on the high performance wide variator belt to operate on your Lenze Simplabelt OR new Berges variable speed pulley, simply click on the appropriate belt size in the table above to have a new page open with the available sizes and pricing for the genuine Berges and Poggi variable speed belts available for prompt shipment from TVT America.

TVT America also offers a complete range of Motor Slide Bases for IEC/mm motors to replace your Lenze Simplabelt Normal Design 11.110.__ __.911, U Design 11.110.__ __.912, K Design 11.110.__ __.913, and L Design 11.110.__ __.914 motor slides.  To view our selection of Italian & German manufactured IEC metric motor slide bases visit this page.



Click Catalog Selection for PDF

   Berges F...sb Documentation
