TVTAmerica Shaft Couplings

Shaft Couplings & Driveshafts
	GTR Disc Couplings & Drive Shafts High Performance						GTR Disc Couplings
	Suitable for turbine speeds to 27500 rpm. Torsionally Rigid
	Bores: 10 to 140mm					Torque: 60 to 30,000 Nm
	Bores: 3/8" to 5.51"			Torque: 531 to 265,500 in-lbs
	GEC Compact Elastic Coupling - Vibration Dampening HP coupling						GEC Pin & Bushing Coupling
	Suitable for speeds to 6000 rpm. Wide Temperature Range
	Bores: 5 to 180mm				Torque: 35 to 35,000 Nm
	Bores: 1/4" to 7.00"			Bores: 310 to 310,060 in-lbs
	GAS-ST Jaw Coupling - Statically balanced turned steel jaw coupling.						GAS Steel Jaw Coupling
	Suitable for speeds to 19,000 rpm. Vibration dampening
	Bores: 10 to 110mm	Torque: 6 to 654 Nm
	Bores: 7/16" to 4.33"			Torque: 53 to 5,788 in-lbs
	GAS-AL Jaw Coupling - Statically balanced turned Aluminum jaw coupling.						aGAS Aluminum Jaw Coupling
	Suitable for speeds to 19,000 rpm. Vibration dampening
	Bores: 10 to 110mm	Torque: 6 to 654 Nm
	Bores: 7/16" to 4.33"			Torque: 53 to 5,788 in-lbs
	GH Jaw Coupling - Fully Turned Steel Jaw Couplings
	Suitable for speeds to 14,000 rpm. Vibration dampening
	Bores: 10 to 90 mm		Torque: 23 to 2454 Nm
	Bores: 7/16" to 3.54"			Torque: 204 to 21,718 in-lbs
	SG Backlash Free Jaw Coupling -Clamp Locking Servo Couplings						SG "SoGood" Jaw Coupling
	Suitable for speeds to 25,000 rpm. Statically balanced -Zero backlash
	Bores: 6 to 80 mm		Torque: 6 to 654 Nm
	Bores: 0.236" to 3.15"			Torque: 62 to 5788 in-lbs
	CCE Backlash Free Coupling - Keyless Compression fit Jaw Coupling
	Suitable for speeds to 25,000 rpm. Statically balanced-Zero Backlash
	Bores: 6 to 80 mm		Torque: 7 to 3241 Nm
	Bores: 0.236" to 3.15"			Torque: 62 to 28,653 in-lbs
	GSF Backlash Free Bellows Coupling -High Rigidity, Low inertia, Servo.
	Suitable for Speeds to 14,000 rpm. High Temp 300C, High Precision.
	Bores: 5 to 45 mm		Torque: 5 to 300 Nm
	Bores: 0.250" to 1.78"			Torque: 44 to 2,655 in-lbs
	GD Nylon & Steel Gear Coupling -Fully Turned Hybrid Couplings
	Speeds to 14,000 rpm. Balanced, 4^o Angular, 2mm axial misalignment
	Bores: 10 to 125 mm		Torque: 11 to 5,000 Nm
	Bores: 0.375 to 4.921"			Torque: 90 to 44,250 in-lbs

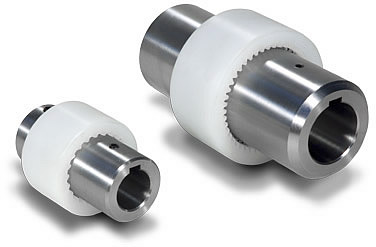

	GN Nylon & Steel Gear Coupling - Designed for Tramec Gearboxes
	Speeds to 4000 rpm. Fully turned, maintenance free.
	Bores: 11 to 60 mm		Torque: 500 Nm
	Bore: 5/8" to 2-15/16"			Torque: 4,425 in-lbs
	GDR Nylon & Steel Gear Couplings - Fully Turned Hybrid Couplings
	Suitable for Speeds to 7,000 rpm. 4^o Angular, 2mm axial misalignment
	Bores: 10 to 110 mm		Torque: 10 to 770 Nm
	Bores: 0.375 to 4.500"			Torque: 80 to 6,815 in-lbs
	GDA Steel on Steel Gear Couplings -Fully Turned, High Torque Density
	Speeds to 6,000 rpm. Torsionally stiff, 2^o Angular Misalignment
	Bores: 11 to 200 mm		Torque: 210 to 55,000 Nm
	Bores: 0.44 to 7.875"			Torque:1859 to 486,750 in-lbs
	GF Highly Flexible Vibration Dampening Coupling
	Speeds to 5100 rpm. Angular Misalignment to 5^o Axial to 5mm
	Bores: 10 to 85mm		Torque: 75 to 1850 Nm
	Bores: 0.375 to 3.346"			Torque: 664 to 16,373 in-lbs
	GFI Highly Flexible LOW COST Vibration Dampening Coupling
	Speeds to 2000 rpm. Angular Misalignment to 1^o Axial to 0.1mm
	Bores: 4 to 15mm		Torque: 0.8 to 6.3 Nm
	Bores: 35 to 0.600"			Torque: 7 to 56 in-lbs
	GC HIgh Torque Density Chain Coupling -Torque Density & Low Price.
	Speeds to 6000 rpm. Angular Misalignment to 2^o Axial to 1.5mm
	Bores: 8 to 110 mm		Torque: 140 to 8000 Nm
	Bores: 0.375 to 4.500"			Torque: 1,239 to 70,800 in-lbs
	GRI Rigid Shaft Coupling - Locks two shafts into one removable union.
	Speeds to 5500 rpm. Precision machined steel high torque coupling.
	Bores: 10 to 50 mm		Torque: 18 to 450 Nm
	Bores: 0.375 to 2.000"			Torque: 154 to 4000 in-lbs
