P Series variable displacement hydaulic pump and fixed displacement radial piston motor drive system

P Series - Hydrostatic Variable Displacement Pump & C-Face Motor
NEMA & IEC

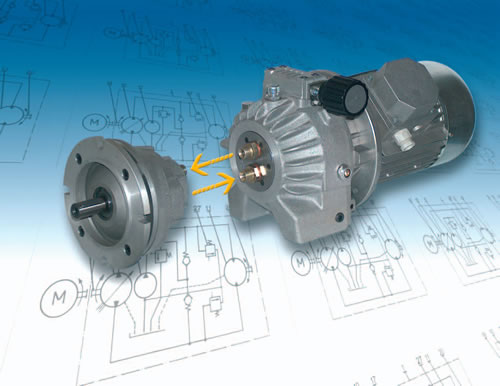

New for 2010 is the series P industrial hydrostatic variable displacement pump and C-Face hydraulic fixed displacement motor. Forward & Reverse, Variable Speed, torque limiting, dynamic braking, and more is available using the P Series Variator.
Modular design - We can assemble & ship IEC/IEC or NEMA/NEMA or IEC/NEMA or NEMA-IEC. Wide Variable Speed range 1750-0-1750 - Independent of Direction - just turn control. Simple Direction Control - Forward or Reverse at the turn of a dial. Adjustable Output Torque Limiter - Simple torque limiting! High starting torque & at low speeds - 250% starting! Universal mounting - B3, B6, B7, V5, V6. Ideal for Hostile Environment - ATEX Group II, dirt, dust, washdown, explosion proof. Mount hydraulic motor in hostile environment and AC motor & pump away. Low maintenance - change synthetic oil every 4000 hours. Dynamic braking - Inherent to the design Soft Start/Stop - optional soft start & stop control is available.

	The P series separates the variable displacement pump from the motor. Making the motor a NEMA or IEC C-face motor opens up a fantastic range of possibilities... we make so many kinds of reducers that will work with this motor. Additionally, you are not limited to an AC motor for the variable displacement pump, you could use a DC, or even a gas engine or PTO. Everything is self contained, no reservoir, valves, filters, fittings, nothing but our pump and motor and your hoses made to length. In portable applications, the weight of the drive motor and pump could be base mounted while the hydraulic motor and gear portable to the application... compact and light weight. This is a machine designers dream.
Because the VarSpe P series is available now through TVT America, we can add a motor and/or a reducer direct from our Italian factories or North American assembly center to give you a complete solution... that's cost effective, fast to get, and trouble free. For service & support, you have a global network of TVT manufacturing & distribution partners who are local to your end-user and ready to assist in nearly every corner of the world.
		Documentation P Series Hydrostatic Drive System
Click Catalog Selection for PDF		NEMA P Catalog	4.74 MB
> > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > >>>>>>> > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > >		IEC P Catalog	4.71 MB
SERVICE LINKS		VarSpe Pump P02 Parts Breakdown	446 KB
Select & Download CAD		VarSpe Pump P04 Parts Breakdown	446 KB
		VarSpe Pump P08 Parts Breakdown	446 KB
		VarSpe Pump P10 Parts Breakdown	446 KB
E-Mail TVT Engineer		VarSpe Motor M02 Parts Breakdown	1.06 MB
a		VarSpe Motor M04 Parts Breakdown	1.06 MB
a		VarSpe Motor M08 Parts Breakdown	1.06 MB
a		VarSpe Motor M10 Parts Breakdown	1.10 MB
a		VarSpe P Series Installation Manual	427 KB
