TM USAa Bookmark and Share

  • 18 Standard Sizes
  • Inch & Metric Bores
  • 11mm to 200mm Metric
  • 3/8" to 5-1/4" Inch
  • 0 to 350Nm torque capacity.
  • 0 to 3150 in-lbs torque capacity.
  • Easy Installation & Removal.
  • Corrosion Resistant
  • Complete Range of Poggi Transmission Elements for System-P.

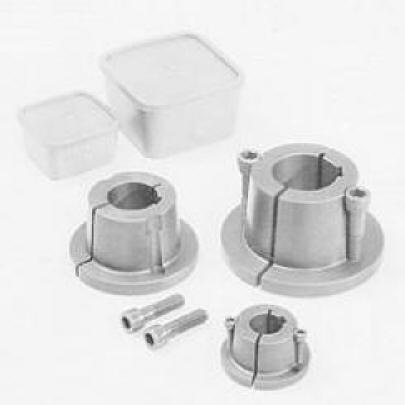

Poggi System-P Taper Bushings are a radial wedge, offering a mechanical advantage to easily create a secure shaft to bore interference fit, yet allow ease of removal and repositioning if desired with no shaft or bushing damage.  Poggi System-P allows a wide range of standard transmission components (Pulleys, Sprockets, Hubs, Etceteras) to be mounted to a wide range of inch and metric shaft diameters and finishes without any special machining.  Used of Poggi System-P bushings is easy and requires only the use of a standard Allen Wrench (hexagonal drive wrench).  Internationally recognized System-P design has been compared to the American QD bushing, while they are simular...they are not interchangeable in dimension or performance.

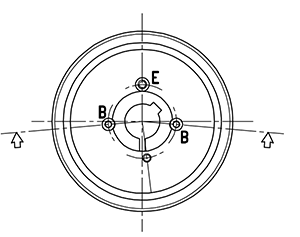

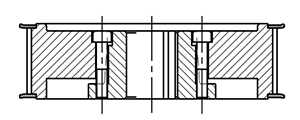

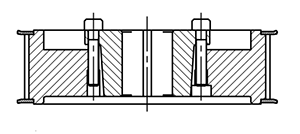

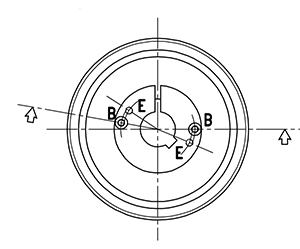

B. Setscrews (standard mounting)   B.  Setscrews (reverse mounting)

E. Dismantling hole   E. Dismantling hole

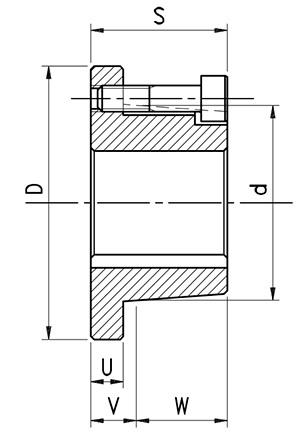

Series Designation & Dimensions
Designation Torque Dimensions Weight
Dimensions Torque d D S U V W
mm Nm mm mm mm mm mm mm kg
R 2016 M5 x 22 6 30 46 27 7 11 16 0.18
R 2825 M6 x 30 8 39 58 37 8 12 25 0.36
   3030 M8 x 35 20 45 65 45 11 15 30 0.62
R 3825 M6 x 30 14 51 70 37 8 12 25 0.58
   4035 M10 x 40 40 56 85 50 11 15 35 1.16
R 4830 M8 x 35 35 64 88 45 11 15 30 1.15
    5040 M12 x 45 60 68 100 58 13 18 40 1.75
R 6035 M12 x 40 60 79 110 53 13 18 35 2.12
   6045 M12 x 50 60 80 110 63 13 18 45 2.49
   7060 M14 x 65 110 98 140 79 14 19 60 4.40
R 7540 M14 x 45 110 96 137 59 14 19 40 3.38
   8070 M12 x 75 60 113 150 88 13 18 70 6.00
   9085 M14 x 90 110 126 165 105 15 20 85 8.40
R 9560 M14 x 65 110 123 165 80 15 20 60 6.40
10095 M16 x 100 160 143 190 119 18 24 95 12.20
115105 M18 x 110 200 161 210 130 18 25 105 17.30
130120 M20 x 120 260 177 230 145 18 25 120 23.00
160140 M22 x 160 350 200 300 180 34 40 140 40.00

Part Number for Metric Bores
  Example:  24mm bore Series R4830, part # is 140483024
Code Designation Bores on mm (ISO E 8)
140201... R 2016 00 - 11 - 12 - 14 - 15 - 16 - 18 - 19 - 20 - 22** 24** 25**
140282... R 2825 00 - 11 - 12 - 14 - 15 - 16 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30*
140303... 3030 00 - 11 - 12 - 14 - 15 - 16 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30 - 32 - 35*
140382.. R 3825 00 - 12 - 14 - 15 - 16 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30 - 32 - 35 - 36 - 38 - 40*
140403... 4035 00 - 12 - 14 - 15 - 16 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30 - 32 - 35 - 36 - 38 - 40 - 42 - 45
140483... R 4830 00 - 14 - 15 - 16 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30 - 32 - 35 - 36 - 38 - 40 - 42 - 45 - 48 - 50*
140504... 5040 00 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30 - 32 - 35 - 36 - 38 - 40 - 42 - 45 - 48 - 50 - 55*
140603... R 6035 00 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30 - 32 - 35 - 38 - 40 - 42 - 45 - 48 - 50 - 55 - 60 - 65*
140604... 6045 00 - 18 - 19 - 20 - 22 - 24 - 25 - 26 - 28 - 30 - 32 - 35 - 38 - 40 - 42 - 45 - 48 - 50 - 55 - 60 - 65*
140706... 7060 00 - 30 - 32 - 35 - 38 - 40 - 42 - 45 - 48 - 50 - 55 - 60 - 65 - 70 - 75
140754... R 7540 00 - 30 - 32 - 35 - 38 - 40 - 42 - 45 - 48 - 50 - 55 - 60 - 65 - 70 - 75
140807... 8070 00 - 40 - 42 - 45 - 48 - 50 - 55 - 60 - 65 - 70 - 75 - 80
140908... 9085 00 - 50 - 55 - 60 - 65 - 70 - 75 - 80 - 85 - 90 - 95
140956... R 9560 00 - 50 - 55 - 60 - 65 - 70 - 75 - 80 - 85 - 90 - 95
141009... 10095 00 - 50 - 55 - 60 - 65 - 70 - 75 - 80 - 85 - 90 - 95 - 100
141151... 115105 00 - 55 - 60 - 65 - 70 - 75 - 80 - 85 - 90 - 95 - 100 - 105 - 110 - 115
141301... 130120 00 - 60 - 65 - 70 - 75 - 80 - 85 - 90 - 95 - 100 - 105 - 110 - 115 - 120 - 125 - 130
141601... 160140 00 - 80 - 85 - 90 - 95 - 95 - 100 - 105 - 110 - 115 - 120 - 125 - 130 - 140 - 150 - 160
* These bores have shallower keyway, see spec sheet.    CLICK ON A BLUE LINK ABOVE FOR SPEC SHEET/BORE.
** No Keyway for these bores

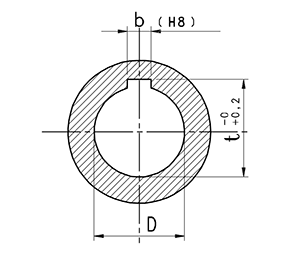

Keyway dimensions for Metric Bores

Bore in mm b t Designation Bore in mm b t
mm mm mm mm
> 10 ~ 12 4 D + 1.8 R 2825 30 8 D + 2.3
> 12 ~ 17 5 D + 2.3 R 3825 40 12 D + 2.3
> 17 ~ 22 6 D + 2.8 R 4830 50 14 D + 2.8
> 22 ~ 30 8 D + 3.3 5040 55 16 D + 1.8
> 30 ~ 38 10 D + 3.3 R 6035 65 18 D + 1.8
> 38 ~ 44 12 D + 3.3 6045 65 18 D + 1.9
> 44 ~ 50 14 D + 3.8
> 50 ~ 58 16 D + 4.3
> 58 ~ 65 18 D + 4.4
> 65 ~ 75 20 D + 4.9
> 75 ~ 85 22 D + 5.4
> 85 ~ 95 25 D + 5.4
> 95 ~ 110 28 D + 6.4
> 110 ~ 130 32 D + 7.4
> 130 ~ 150 36 D + 8.4
> 150 ~ 170 40 D + 9.4

Part Numbers for Inch Bores
  Example: 1" bore Series R4830, part # is 140483100
Code Designation Bores in inches (IOS E 8)
  R 2016   3/8 - 7/16 - 1/2 - 9/16 - 5/8 - 11/16 - 3/4 - 13/16
140282... R 2825   3/8 - 7/16 - 1/2 - 9/16 - 5/8 - 11/16 - 3/4 - 13/16 - 7/8 - 15/16 - 1" - 1"1/8
140382... R 3825   1/2 - 9/16 - 5/8 - 11/16 - 3/4 - 13/16 - 7/8 - 15/16 - 1" - 1"1/8 - 1"1/4 - 1"3/8 - 1"1/2
140483... R 4830   3/4 - 13/16 - 7/8 - 15/16 - 1" - 1"1/8 - 1"1/4 - 1"3/8 - 1"1/2 - 1"5/8 - 1"3/4 - 1"7/8
140504... 5040   3/4 - 13/16 - 7/8 - 15/16 - 1" - 1"1/8 - 1"1/4 - 1"3/8 - 1"1/2 - 1"5/8 - 1"3/4 - 1"7/8 - 2"
140603... R 6035   7/8 - 1" - 1"1/8 - 1"1/4 - 1"3/8 - 1"1/2 - 1"5/8 - 1"3/4 - 1"7/8 - 2" - 2"1/8 - 2"1/4 - 2"3/8
140604... 6045   7/8 - 1" - 1"1/8 - 1"1/4 - 1"3/8 - 1"1/2 - 1"5/8 - 1"3/4 - 1"7/8 - 2" - 2"1/8 - 2"1/4 - 2"3/8
140706... 7060   1"1/4 - 1"3/8 - 1"1/2 - 1"5/8 - 1"3/4 - 1"7/8 - 2" - 2"1/8 - 2"1/4 - 2"3/8 - 2"1/2 - 2"3/4 - 2"7/8
140754... R 7540   1"1/4 - 1"3/8 - 1"1/2 - 1"5/8 - 1"3/4 - 1"7/8 - 2" - 2"1/8 - 2"1/4 - 2"3/8 - 2"1/2 - 2"3/4 - 2"7/8
140807... 8070   1"1/2 - 1"5/8 - 1"3/4 - 1"7/8 - 2" - 2"1/8 - 2"1/4 - 2"3/8 - 2"1/2 - 2"3/4 - 2"7/8 - 3" - 3"1/8
140908... 9085   2" - 2"1/8 - 2"1/4 - 2"3/8 - 2"1/2 - 2"3/4 - 2"7/8 - 3" - 3"1/8 - 3"1/4 - 3"3/8 - 3"1/2 - 3"3/4
140956... R 9560   2" - 2"1/8 - 2"1/4 - 2"3/8 - 2"1/2 - 2"3/4 - 2"7/8 - 3" - 3"1/8 - 3"1/4 - 3"3/8 - 3"1/2 - 3"3/4
141009... 10095   2" - 2"1/8 - 2"1/4 - 2"3/8 - 2"1/2 - 2"3/4 - 2"7/8 - 3" - 3"1/8 - 3"1/4 - 3"3/8 - 3"1/2 - 3"3/4 - 4"
141151... 115105   2"1/8 - 2"1/4 - 2"3/8 - 2"1/2 - 2"3/4 - 2"7/8 - 3" - 3"1/8 - 3"1/4 - 3"3/8 - 3"1/2 - 3"3/4 - 4" - 4"1/4 - 4"1/2
141301... 130120   2"3/4 - 2"7/8 - 3" - 3"1/8 - 3"1/4 - 3"3/8 - 3"1/2 - 3"3/4 - 4" - 4"1/4 - 4"1/2 4"3/4 - 5" - 5"1/4

Standard Keyway Dimensions for Inch Bores


Bore in inches b t
> 1/4" ~ 1/2" 1/8" D + 1/6"
> 1/2" ~ 3/4" 3/16" D + 3/32"
> 3/4" ~ 1" 1/4" D + 1/8"
> 1" ~ 1"1/4 5/16" D + 1/8"
> 1"1/4 ~ 1"1/2 3/8" D + 1/8"
> 1"1/2 ~ 1"3/4 7/16" D + 5/32"
> 1"3/4 ~ 2" 1/2" D + 5/32"
> 2" ~ 2"1/2 5/8" D + 7/32"
> 2"1/2 ~ 3" 3/4" D + 1/4"
> 3" ~ 3"1/2 7/8" D + 5/16"
> 3"1/2 ~ 4" 1" D + 3/8"
> 4" ~ 5" 1"1/4 D + 7/16"
> 5" ~ 6" 1"1/2 D + 1/2"
> 6" ~ 7" 1"3/4 D + 5/8"

Click Catalog Selection for PDF

   Poggi System-P Documentation
