2000 Series Right Angle Gearboxes by Poggi
Poggi, Chiaravalli, Bonfiglioli, Tramec, STM, Mitre, Miter, Gleason Bevel Gearboxes
  • Three complete series. 2000, 4000, 5000.
  • One, two, three, four, and hollow shafts.
  • Standard, and REVERSING with neutral gearboxes.
  • Ratios: 1/1, 1/2, 1/3
  • Vacuum diecast Aluminum and ALL STAINLESS STEEL models.  Unequaled in the market.
  • Metric sizes from 8mm to 25mm shafts
  • Torque from 1.5 to 44Nm.
  • Power fraction to 10hp.
  • 100% Designed & Made in Italy

Stainless <Click on Catalog to Download> Aluminum


Poggi right angle, mitre or miter gearboxes have set the standard in the industry for dimension, quality, and design.  Customers seeking to replace Bonfiglioli, Chiaravalli, STM and other metric right angle manufactures can often find it in one place, quickly, economically, and superior in quality... Poggi from TVT America.   In Stock in USA or available very quickly from production.
Cad files for 2000 Series CLICK for CAD
Series 2000 (four holes in housing) This is 2000 Page
Series 4000 (three holes in housing) Link to 4000 Page
Series 5000 (stainless steel) Link to 5000 Page

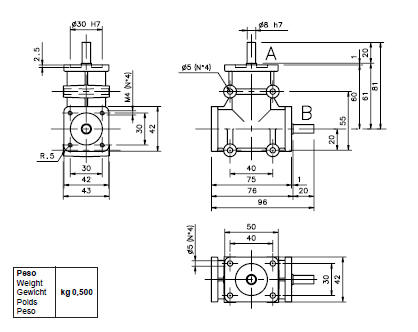

Poggi 2000

Right Angle Gearbox, two gears two 8mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182000111 2000 R 1:1 D.1 D.1 0.72 27
182000112 2000 R 1:1 D.2 D.2 0.72 27
182000121 2000 R 1:2 D.1 D.1 0.17 13
182000122 2000 R 1:2 D.2 D.2 0.17 13
Poggi Chiaravalli a a a
a a a a a
a a a a a
a a a a a
a a a a a
Poggi Chiaravallii a a a
182000111 R3081101 a a a
182000112 R3081102 a a a
182000121 R3081203 a a a
182000122 R3081204 a a a

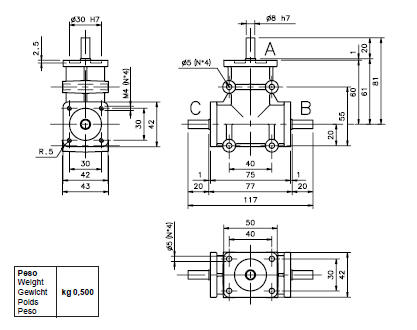

Poggi 2002

Right Angle Gearbox, two gears three 8mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182002111 2002 R 1:1 D1/2 1/2 0.72 27
Poggi Poggi Poggi Poggi Poggi
182002121 2002 R 1:2 D1/2 1/2 0.17 13
gearbox agearbox gearbox *based on 1750 rpm input
Gleason Bevel Gearbox STM S.p.A.

Motovario S.p.A.

Bonfiglioli S.p.A.

Poggi

Chiaravalli
182002111 R3081105
182002121 R3081206
aa
a
aaa a
aa a

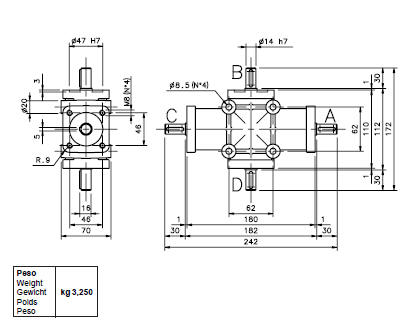

Poggi 2006
Right Angle Gearbox, three gears four 14mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182006111 2006 R 1:1 D1/2 1/2 3.15 40 in-lbs
182006121 2006 R 1:2 D.1/2 1/2 0.86 22 in-lb
182006131 2006 R 1:3 D1/2 1/2 0.43 15 in-lbs
a a a *based on 1750 rpm input
Poggi Chiaravalli WFast delivery of metric bevel, miter, mitre, gearbox, reducers, riduttori to replace Bonfiglioli, Chairavalli, STM Riduttori, from Poggi the master manufacture of Italian Bevel gearing.
182006111 R3141119
182006121 R3141220
182006131 R3141321
az a
a a
a a

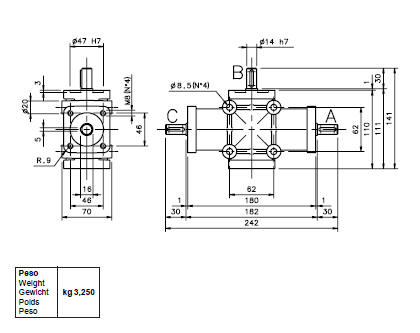

Poggi 2007
Right Angle Gearbox, three gears three 14mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182007111 2007 R 1:1 D.1 D.1 3.15 80B/40C
182007112 2007 R 1:1 D.2 D.2 3.15 80B/40C
182007121 2007 R 1:2 D.1 D.1 0.86 44B/22C
182007122 2007 R 1:2 D.2 D.2 0.86 44B/22C
182007131 2007 R 1:3 D.1 D.1 0.43 31B/16C
182007132 2007 R 1:3 D.2 D.2 0.43 31B/16C
a a a a a
Poggi Chiaravalli a Poggi Chiaravalli
182007111 R3141113 a 182007122 R3141216
182007112 R3141114 a 182007131 R3141317
182007121 R3141215 a 182007132 R3141318
Poggi 2008
Right Angle Gearbox, two gears, three shafts 14mm in 1/1, 1/2, and 1/3 ratio.
Codice Description D1 or D2 Hp* Torq in-lb
182008111 2008 R 1:1 D.1/2 D.1/2 3.15 57
182008121 2008 R 1:2 D.1/2 D.1/2 1.17 31
182008131 2008 R 1:3 D.1/2 D.1/2 0.59 22
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
182008111 RAN 18.14 DA1 HS RL42 BC 1:1 ZL432 BC 1:1 R3141107
182008121 RAN 18.14 DA2 HS RL42 BC 2:1 ZL432 BC 2:1 R3141208
182008131 a a a R3141309
a a a a a
a a a a a
a a a a a

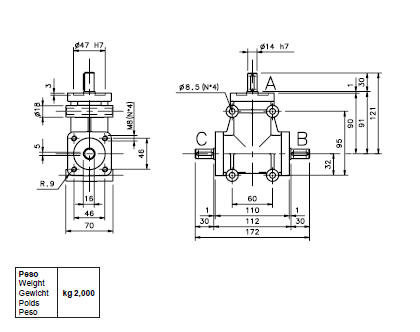

Poggi 2011

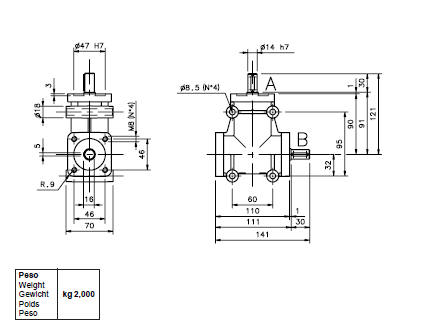

Right Angle Gearbox, two gears, two shafts 14mm in 1/1, 1/2, and 1/3 ratio.
Codice Description D1 or D2 Hp* Torq in-lb
182011111 2011 R 1:1 D.1 D.1 3.15 57
182011112 2011 R 1:1 D.2 D.2 3.15 57
182011121 2011 R 1:2 D.1 D.1 1.17 31
182011122 2011 R 1:2 D.2 D.2 1.17 31
182011131 2011 R 1:3 D.1 D.1 0.59 22
182011132 2011 R 1:3 D.2 D.2 0.59 22
a a a a a
Poggi Bonfiglioli Tramec STM Chiravalli
182011111 RAN 18.14 SA1 HS RL42 AB 1:1 ZL432 AB 1:1 R3141101
182011112 RAN 18.14 SB1 HS RL42 AC 1:1 ZL432 AC 1:1 R3141102
182111121 RAN 18.14 SA2 HS RL42 AB 2:1 ZL432 AB 2:1 R3141203
18211122 RAN18.14 SB2 HS RL42 AC 2:1 ZL432 AC 2:1 R3141204
18211131 a a a R3141205
18211132 a aa aa R3141206

Poggi 2012

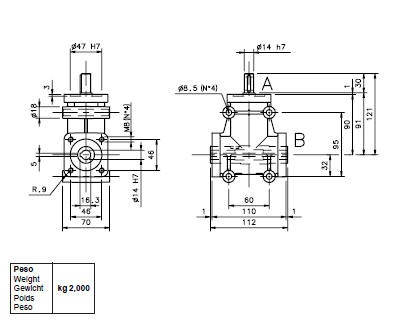

Hollow Output Bore Right Angle Gearbox with 14mm shafts & bore. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182012111 2012 R 1:1 D.1/2 D.1/2 3.15 57
182012121 2012 R 1:2 D.1/2 D.1/2 1.17 31
182012131 2012 R 1:3 D.1/2 D.1/2 0.59 22
z z z z z
Poggi Bonfiglioli Tramec STM Chiravalli
182012111 na na na R3141110
182012121 na na na R3141211
182012131 na na na R3141312
z z z z z

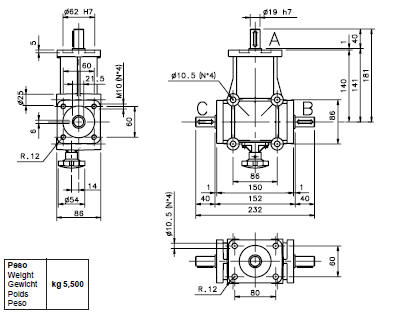

Poggi 2019

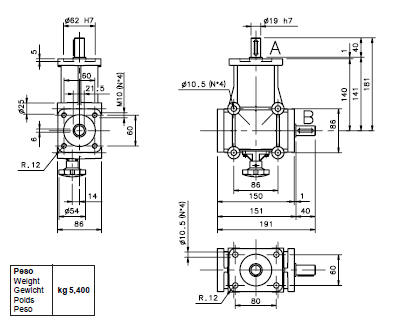

Right Angle Gearbox Forward/Neutral/Reverse two 19mm shafts.
Codice Description D1 or D2 Hp* Torq in-lb
182019 2019 Reversing 3.88 137
Poggi offers Gleason Coniflex Gearboxes which offer the unique ability to change directions at the movement of a leverl.  This reversing gear is very unique in the industrial speed reducer world, as very few gear drives for industrial use, right angle, parallel, or concentric offer a reverse gear.   So with this Pogg Transmissioni Riduttori we are offering the gear drive that is not found anywhere else in the market, at any price, and yet at famous Poggi quality an design.





Poggi 2020

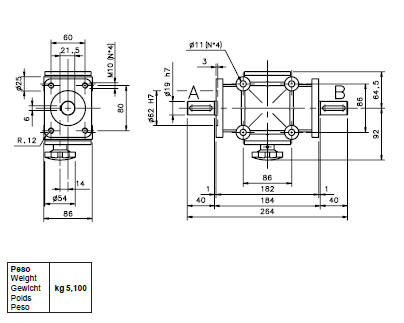

Concentric Gearbox Forward/Neutral/Reverse two 19mm shafts
Codice Description D1 or D2 Hp* Torq in-lb
182020 2020 Reversing 3.88 137








Poggi 2023
 Right Angle Gearbox Forward/Neutral/Reverse and Three mitered 19mm shafts
Codice Description D1 or D2 Hp* Torq in-lb
182023 2023 Reversing 3.88 137

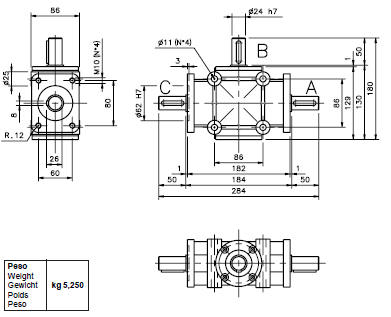

Poggi 2025
Three Gears, Three 24mm shafts, Right Angle Gearbox. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182025111 2025 R 1:1 D.1 D.1 12.66 159
182025112 2025 R 1:1 D.2 D.2 12.66 159
182025121 2025 R 1:2 D.1 D.1 5.06 124
182025122 2025 R 1:2 D.2 D.2 5.06 124
18205131 2025 R 1:3 D.1 D.1 2.53 80
18205132 2025 R 1:3 D.2 D.2 2.53 80

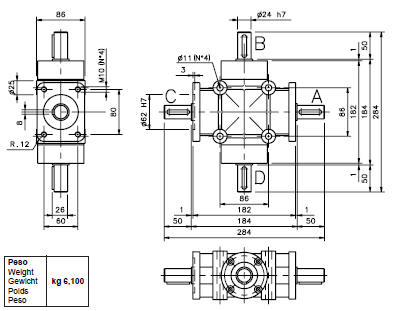

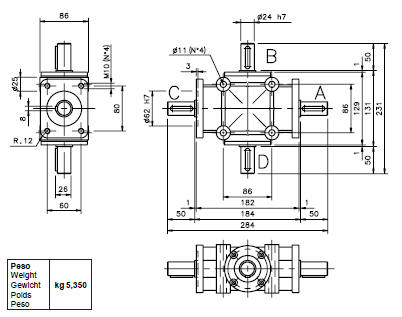

Poggi 2026
Three Gears, Four 24mm shafts, Right Angle Gearbox. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182026111 2026 R 1:1 D.1/2 D.1/2 12.66 159

182026121 2026 R 1:2 D.1/2 D.1/2 5.06 124

182026131 2026 R 1:3 D.1/2 D.1/2 2.53 80




Poggi 2027
Four Gears, Four 24mm shafts, Right Angle Gearbox 1/1 ratio
Codice Description D1 or D2 HP* Torq in-lb
182027111 2007 R 1:1 D.1/2 D.1/2 12.66 159








Poggi 2028

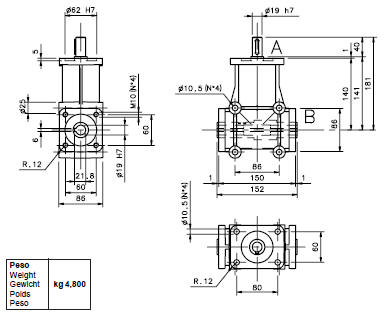

Hollow Output Right Angle Gearbox, 19mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182028111 2028 R 1:1 D.1/2 D.1/2 9.47 336
182028121 2028 1:2 D.1/2 D.1/2 3.15 221
182028131 2028 R 1:3 D.1/2 D.1/2 1.57 159
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
182028111 na na na R3191110
182028121 na na na R3191211
182028131 na na na R3191312

Poggi 2030
Right Angle Gearbox, two 19mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182030111 2030 R 1:1 D.1 D.1 9.47 336
182030112 2030 R 1:1 D.2 D.2 9.47 336
182030121 2030 R 1:2 D.1 D.1 3.15 221
182030122 2030 R 1:2 D.2 D.2 3.15 221
182030131 2030 R 1:3 D.1 D.1 1.57 159
182030132 2030 R 1:3 D.2 D.2 1.57 159
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
182030111 na na ZL433AB 1:1 R3191101
182030112 na na ZL433AC 1:1 R3191102
182030121 na na ZL433AB 2:1 R3191203
182030122 na na ZL433AC 2:1 R3191204
182030131 na na na R3191305
182030132 na na na R3191306

Poggi 2031

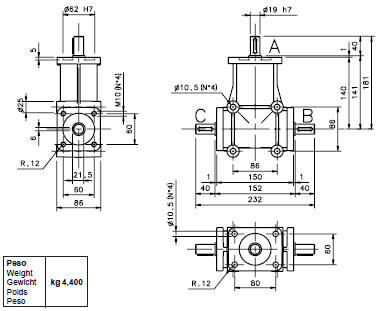

Right Angle Gearbox, three 19mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182031111 2031 R 1:1 D.1/2 D.1/2 9.47 336
182031121 2031 R 1:2 D.1/2 D.1/2 3.15 221
182031131 2031 R 1:3 D.1/2 D.1/2 1.57 159
a a a a a
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
182031111 na na ZL433BC 1:1 R3191107
182031121 na na ZL433BC 2:1 R3191208
182031131 na na a R3191309

Poggi 2032
Right Angle Gearbox, two 24mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182032111 2032 R 1:1 D.1 D.1 12.66 443
182032112 2032 R 1:1 D.2 D.2 12.66 443
182032121 2032 R 1:2 D.1 D.1 5.06 354
182032122 2032 R 1:2 D.2 D.2 5.06 354
182032131 2032 R 1:3 D.1 D.1 2.53 248
182032132 2032 R 1:3 D.2 D.2 2.53 248
Poggi Bonfiglioli Tramec STM Chiaravalli
Poggi Bonfiglioli Tramec STM Chiaravalli
182032111 na na ZL434AB1:1 R3241101
182032112 na na ZL434AC1:1 R3241102
182032121 na na ZL434AB2:1 R3241203
182032122 na na ZL434AC2:1 R3241204
182032131 na na na R3241305
182032132 na na na R3241306

Poggi 2033

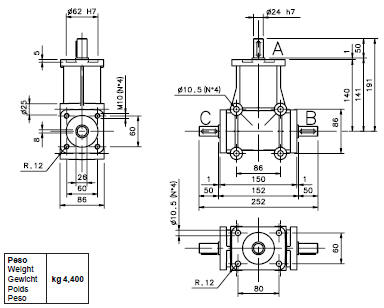

Right Angle Gearbox, three 24mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
182033111 2033 R 1:1 D.1/2 D.1/2 12.66 221
182033121 2033 R 1:2 D.1/2 D.1/2 5.06 177
182033131 2033 R 1:3 D.1/2 D.1/2 2.54 123
a a a a a
a a a a a
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
182033111 na na ZL434BC1:1 R3241107
182033121 na na ZL434BC1:2 R3241108
182033131 na na na R3241109
