4000 Series Right Angle Gearboxes by Poggi
Poggi, Chiaravalli, Bonfiglioli, Tramec, STM, Mitre, Miter, Gleason Bevel Gearboxes
  • Three complete series. 2000, 4000, 5000.
  • One, two, three, four, and hollow shafts.
  • Standard, and REVERSING with neutral gearboxes.
  • Ratios: 1/1, 1/2, 1/3
  • Vacuum diecast Aluminum and ALL STAINLESS STEEL models.  Unequaled in the market.
  • Metric sizes from 8mm to 25mm shafts
  • Torque from 1.5 to 44Nm.
  • Power fraction to 10hp.
  • 100% Designed & Made in Italy

Stainless <Click on Catalog to Download> Aluminum

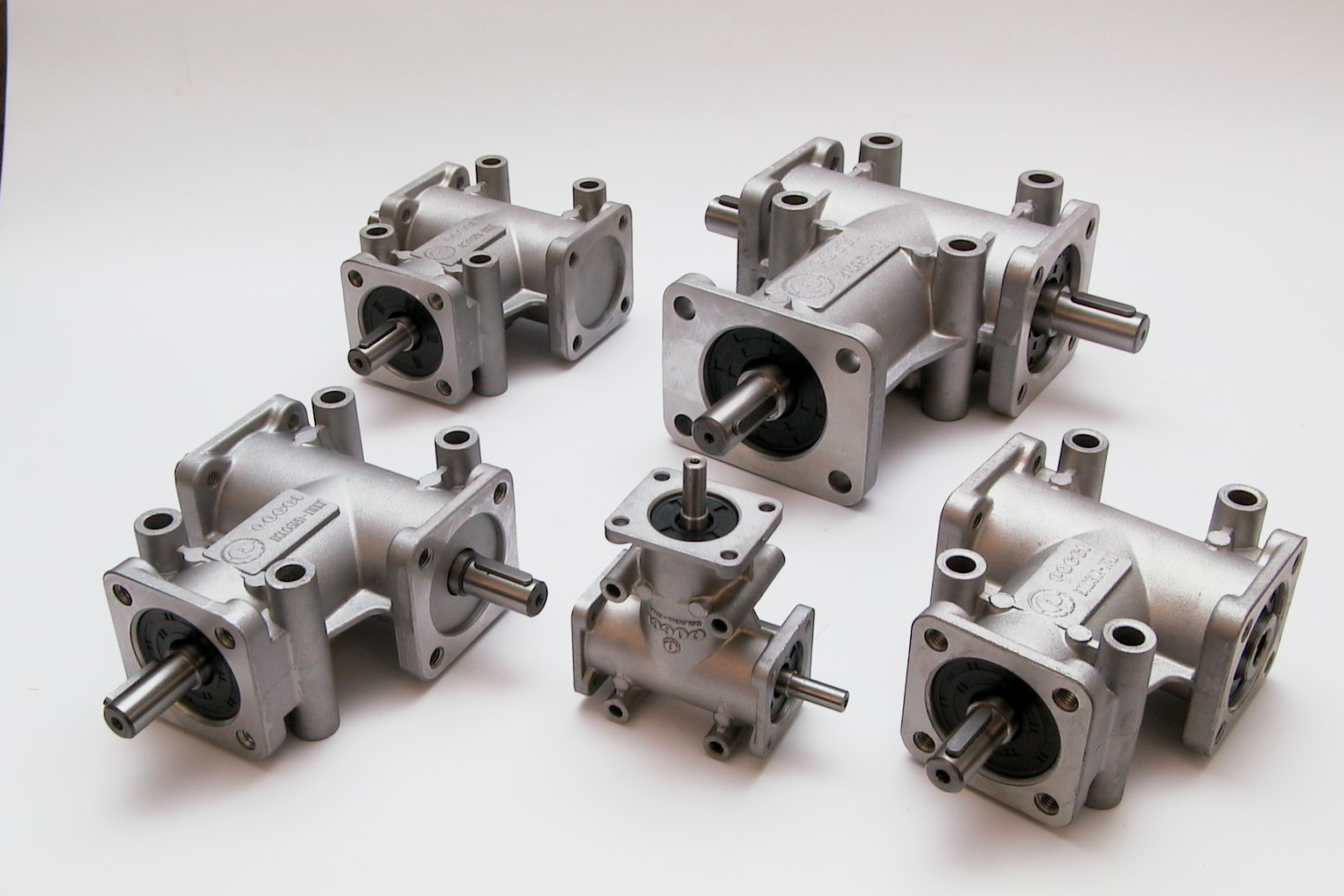

Poggi right angle, mitre or miter gearboxes have set the standard in the industry for dimension, quality, and design.  Customers seeking to replace Bonfiglioli, Chiaravalli, STM and other metric right angle manufactures can often find it in one place, quickly, economically, and superior in quality... Poggi from TVT America.   In Stock in USA or available very quickly from production.
Cad files for 4000 Series CLICK for CAD
Series 2000 (four holes in housing) Link to 2000 Page
Series 4000 (three holes in housing) This is 4000 Page
Series 5000 (stainless steel) Link to 5000 Page

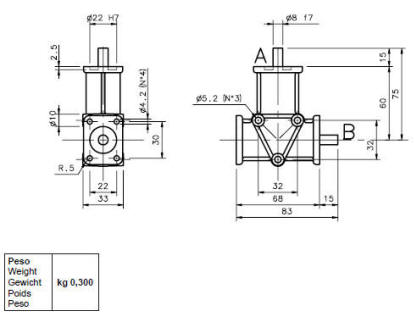

Poggi 4000

Right Angle Gearbox, two gears two 8mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
184000111 4000 R 1:1 D.1 D.1 0.64 21
184000112 4000 R 1:1 D.2 D.2 0.64 21
184000121 4000 R 1:2 D.1 D.1 0.26 18
184000122 4000 R 1:2 D.2 D.2 0.26 18
Poggi Chiaravalli a a a
These sizes available in Stainless Steel 5000 series.
a a a a a
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravallii
184000111 RAN8 SA1 RL31 AB 1;1 ZL331 AB 1:1 R1151101
184000112 RAN8 SB1 RL31 AC 1:1 ZL331 AC 1:1 R1151102
184000121 RAN8 SA2 RL31 AB 2:1 ZL331 AB 2:1 R1151203
184000122 RAN8 SB2 RL31 AC 2:1 ZL331 AC 2:1 R1151204

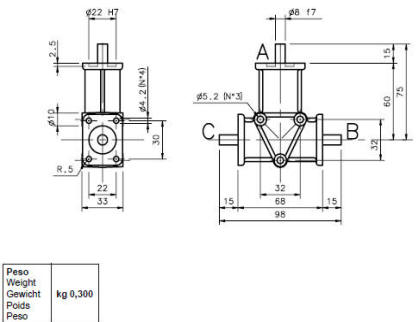

Poggi 4002

Right Angle Gearbox, two gears three 8mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
184002111 4002 R 1:1 D1/2 1/2 0.64 11/shaft
These sizes available in Stainless Steel 5000 Series
184002121 4002 R 1:2 D1/2 1/2 0.26 9/shaft
gearbox agearbox gearbox *based on 1750 rpm input
a sa a a a
Poggi

Bonfiglioli

 Tramec STM Chiaravalli
184002111 RAN8 DA1 RL31 BC 1:1 ZL331 BC 1:1 R1081105
184002121 RAN8 DA2 RL31 BC 2:1 ZL331 BC 2:1 R1081206
aa
a
aaa a
aa a

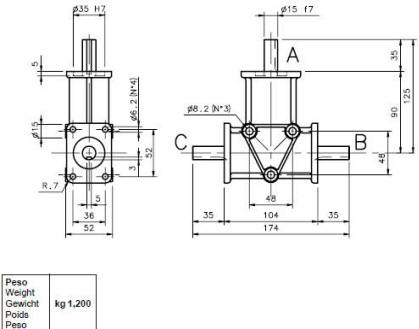

Poggi 4008
Right Angle Gearbox, two gears, three shafts 15mm in 1/1, 1/2, and 1/3 ratio.
Codice Description D1 or D2 Hp* Torq in-lb
184008111 2008 R 1:1 D.1/2 D.1/2 2.24 39/shaft
184008121 2008 R 1:2 D.1/2 D.1/2 0.86 30/shaft
These sizes available in Stainless Steel 5000 Series
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
184008111 RAN 15DA1 HS RL32 BC 1:1 ZL332 BC 1:1 R1151105
184008121 RAN 15DA2 HS RL32 BC 2:1 ZL332 BC 2:1 R1151206
a a a a a
a a a a a
a a a a a
a a a a a

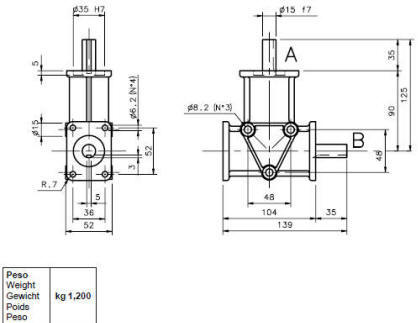

Poggi 4011
Right Angle Gearbox, two gears, two shafts 15mm in 1/1, 1/2, and 1/3 ratio.
Codice Description D1 or D2 Hp* Torq in-lb
184011111 4011 R 1:1 D.1 D.1 2.24 39
184011112 4011 R 1:1 D.2 D.2 2.24 39
184011121 4011 R 1:2 D.1 D.1 0.86 30
184011122 4011 R 1:2 D.2 D.2 0.86 30
182011131 2011 R 1:3 D.1 D.1 0.59 22
These sizes available in Stainless Steel 5000 Series.
a a a a a
Poggi Bonfiglioli Tramec STM Chiravalli
184011111 RAN 15 SA1 HS RL32 AB 1:1 ZL332 AB 1:1 R1151101
184011112 RAN 15 SB1 HS RL32 AC 1:1 ZL332 AC 1:1 R1151102
18411121 RAN 15 SA2 HS RL32 AB 2:1 ZL332 AB 2:1 R1151203
18411122 RAN15 SB2 HS RL32 AC 2:1 ZL332 AC 2:1 R1151204
18411131 a a a a
18211132 a aa aa R3141206

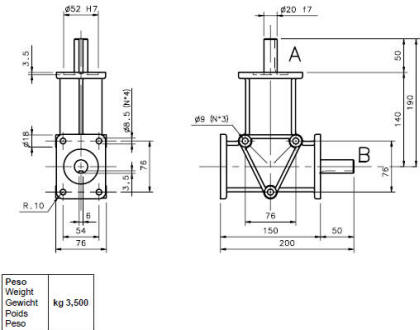

Poggi 4030
Right Angle Gearbox, two 20mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
184030111 4030 R 1:1 D.1 D.1 6.89 241
184030112 4030 R 1:1 D.2 D.2 6.89 241
184030121 4030 R 1:2 D.1 D.1 2.58 177
184030122 4030 R 1:2 D.2 D.2 2.58 177
184030131 4030 R 1:3 D.1 D.1 1.57 159
These sizes available in Stainless Steel 5000 Series
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
184030111 RAN20 SA1 HS RL33 AB 1:1 ZL333AB 1:1 R1201101
184030112 RAN20 SB1 HS RL33 AC 1:1 ZL333AC 1:1 R1201102
184030121 RAN20 SA2 HS RL33 AB 2:1 ZL333AB 2:1 R1201203
184030122 RAN20 SB2 HS RL33 AC 2:1 ZL333AC 2:1 R1201204
1 na na na R3191305
184030132 na na na R3191306

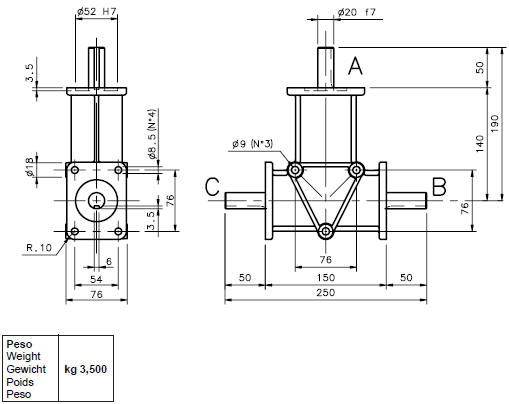

Poggi 4031
Right Angle Gearbox, three 20mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
184031111 4031 R 1:1 D.1/2 D.1/2 6.89 120/shaft
184031121 4031 R 1:2 D.1/2 D.1/2 2.58 89/shaft
184031131 2031 R 1:3 D.1/2 D.1/2 1.57 159
These sizes available in Stainless Steel 5000 Series
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
184031111 RAN20 DA1 HS RL33 BC 1:1 ZL333BC 1:1 R1201105
184031121 RAN20 DA2 HS RL33 BC 2:1 ZL333BC 2:1 R1201206
182031131 na na a R3191309

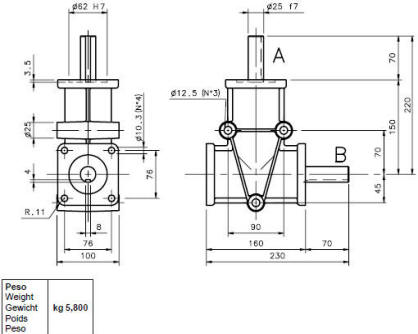

Poggi 4032
Right Angle Gearbox, two 25mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
184032111 4032 R 1:1 D.1 D.1 11.19 389
184032112 4032 R 1:1 D.2 D.2 11.19 389
184032121 4032 R 1:2 D.1 D.1 5.17 362
184032122 4032 R 1:2 D.2 D.2 5.17 362
182032131 2032 R 1:3 D.1 D.1 2.53 248
These sizes available in Stainless Steel 5000 Series
Poggi Bonfiglioli Tramec STM Chiaravalli
Poggi Bonfiglioli Tramec STM Chiaravalli
184032111 RAN25 SA1 HS RL34 AB 1:1 ZL334AB1:1 R1251101
184032112 RAN25 SB1 HS RL34 AC 1:1 ZL334AC1:1 R1251102
184032121 RAN25 SA2 HS RL34 AB 2:1 ZL334AB2:1 R1251203
184032122 RAN25 SB2 HS RL34 AC 2:1 ZL334AC2:1 R1251204
182032131 na na na R3241305
182032132 na na na R3241306

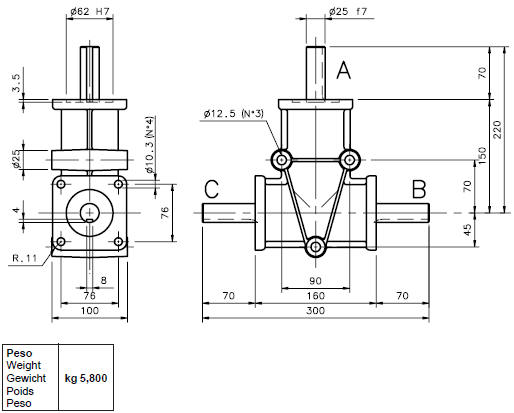

Poggi 4033
Right Angle Gearbox, three 25mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
184033111 4033 R 1:1 D.1/2 D.1/2 11.19 195/shaft
184033121 4033 R 1:2 D.1/2 D.1/2 5.17 195/shaft
182033131 2033 R 1:3 D.1/2 D.1/2 2.54 123
These sizes available in Stainless Steel 5000 Series
a a a a a
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
184033111 RAN25 DA1 HS RL34 BC 1:1 ZL334BC1:1 R1251105
184033121 RAN25 DA2 HS RL34 BC 1:1 ZL334BC1:2 R1251206
