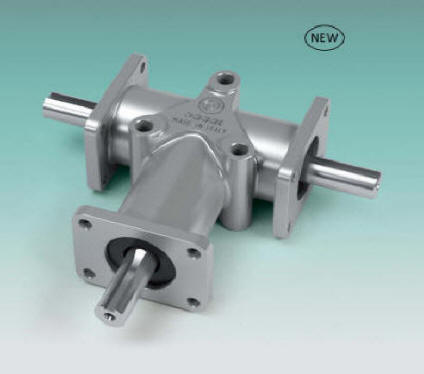

5000 Series Stainless Steel Right Angle Gearboxes by Poggi
  • Housing of AISI 316 Stainless Steel.
  • Micropolished to assure easy clean no stick surface.
  • Shafts of AISI 316 Stainlless steel.
  • Ratios: 1/1, 1/2
  • Synthetic lubricated for maintenance free.
  • Metric sizes from 8mm to 25mm stainless steel shafts
  • Torque from 1.5 to 44Nm.
  • Power fraction to 10hp.
  • 100% Designed & Made in Italy
  • Replaces most popular sizes in majority of metric miter type gearboxes produced.
  • Easy interchanges from TVT database.

Stainless <Click on Catalog to Download> Aluminum


Poggi stainless steel right angle gearboxes replace Bonfiglioli, Chiaravalli, STM and other metric right angle manufactures standard aluminum miter boxes.
Cad files for 5000 Series CLICK for CAD
Series 2000 (four holes in housing) Link to 2000 Page
Series 4000 (three holes in housing) Link to 4000 Page
Series 5000 (stainless steel) This is 5000 Page

Poggi 5000

STAINLESS STEEL Right Angle Gearbox, two gears two 8mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
185000111 5000 R 1:1 D.1 D.1 0.64 21
185000112 5000 R 1:1 D.2 D.2 0.64 21
185000121 5000 R 1:2 D.1 D.1 0.26 18
185000122 5000 R 1:2 D.2 D.2 0.26 18
Poggi Chiaravalli a a a
a
a a a a a
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravallii
185000111 RAN8 SA1 RL31 AB 1;1 ZL331 AB 1:1 R1151101
185000112 RAN8 SB1 RL31 AC 1:1 ZL331 AC 1:1 R1151102
185000121 RAN8 SA2 RL31 AB 2:1 ZL331 AB 2:1 R1151203
185000122 RAN8 SB2 RL31 AC 2:1 ZL331 AC 2:1 R1151204

Poggi 5002

STAINLESS STEEL Right Angle Gearbox, two gears three 8mm shafts. 1/1, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
185002111 5002 R 1:1 D1/2 1/2 0.64 11/shaft
a
185002121 5002 R 1:2 D1/2 1/2 0.26 9/shaft
gearbox agearbox gearbox *based on 1750 rpm input
a sa a a a
Poggi

Bonfiglioli

 Tramec STM Chiaravalli
185002111 RAN8 DA1 RL31 BC 1:1 ZL331 BC 1:1 R1081105
185002121 RAN8 DA2 RL31 BC 2:1 ZL331 BC 2:1 R1081206
aa
a
aaa a
aa a
Poggi 5008
Right Angle Gearbox, two gears, three shafts 15mm in 1/1, 1/2, and 1/3 ratio.
Codice Description D1 or D2 Hp* Torq in-lb
185008111 5008 R 1:1 D.1/2 D.1/2 2.24 39/shaft
184008121 5008 R 1:2 D.1/2 D.1/2 0.86 30/shaft
a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
185008111 RAN 15DA1 HS RL32 BC 1:1 ZL332 BC 1:1 R1151105
185008121 RAN 15DA2 HS RL32 BC 2:1 ZL332 BC 2:1 R1151206
a a a a a
a a a a a
a a a a a
a a a a a

Poggi 5011
STAINLESS STEEL Right Angle Gearbox, two gears, two shafts 15mm in 1/1, 1/2, and 1/3 ratio.
Codice Description D1 or D2 Hp* Torq in-lb
185011111 5011 R 1:1 D.1 D.1 2.24 39
185011112 5011 R 1:1 D.2 D.2 2.24 39
185011121 5011 R 1:2 D.1 D.1 0.86 30
185011122 5011 R 1:2 D.2 D.2 0.86 30
182011131 2011 R 1:3 D.1 D.1 0.59 22
a
a a a a a
Poggi Bonfiglioli Tramec STM Chiravalli
185011111 RAN 15 SA1 HS RL32 AB 1:1 ZL332 AB 1:1 R1151101
185011112 RAN 15 SB1 HS RL32 AC 1:1 ZL332 AC 1:1 R1151102
18511121 RAN 15 SA2 HS RL32 AB 2:1 ZL332 AB 2:1 R1151203
18511122 RAN15 SB2 HS RL32 AC 2:1 ZL332 AC 2:1 R1151204
18411131 a a a a
18211132 a aa aa R3141206

Poggi 5030
STAINLESS STEEL Right Angle Gearbox, two 20mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
185030111 5030 R 1:1 D.1 D.1 6.89 241
185030112 5030 R 1:1 D.2 D.2 6.89 241
185030121 5030 R 1:2 D.1 D.1 2.58 177
185030122 5030 R 1:2 D.2 D.2 2.58 177
184030131 4030 R 1:3 D.1 D.1 1.57 159
a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
185030111 RAN20 SA1 HS RL33 AB 1:1 ZL333AB 1:1 R1201101
185030112 RAN20 SB1 HS RL33 AC 1:1 ZL333AC 1:1 R1201102
185030121 RAN20 SA2 HS RL33 AB 2:1 ZL333AB 2:1 R1201203
185030122 RAN20 SB2 HS RL33 AC 2:1 ZL333AC 2:1 R1201204
1 na na na R3191305
184030132 na na na R3191306

Poggi 5031
STAINLESS STEEL Right Angle Gearbox, three 20mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
185031111 5031 R 1:1 D.1/2 D.1/2 6.89 120/shaft
185031121 5031 R 1:2 D.1/2 D.1/2 2.58 89/shaft
184031131 2031 R 1:3 D.1/2 D.1/2 1.57 159
a
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
185031111 RAN20 DA1 HS RL33 BC 1:1 ZL333BC 1:1 R1201105
185031121 RAN20 DA2 HS RL33 BC 2:1 ZL333BC 2:1 R1201206
182031131 na na a R3191309

Poggi 5032
STAINLESS STEEL Right Angle Gearbox, two 25mm shafts. 1/2, 1/2, and 1/3 ratios
Codice Description D1 or D2 Hp* Torq in-lb
185032111 5032 R 1:1 D.1 D.1 11.19 389
185032112 5032 R 1:1 D.2 D.2 11.19 389
185032121 5032 R 1:2 D.1 D.1 5.17 362
185032122 5032 R 1:2 D.2 D.2 5.17 362
182032131 2032 R 1:3 D.1 D.1 2.53 248
a
Poggi Bonfiglioli Tramec STM Chiaravalli
Poggi Bonfiglioli Tramec STM Chiaravalli
185032111 RAN25 SA1 HS RL34 AB 1:1 ZL334AB1:1 R1251101
185032112 RAN25 SB1 HS RL34 AC 1:1 ZL334AC1:1 R1251102
185032121 RAN25 SA2 HS RL34 AB 2:1 ZL334AB2:1 R1251203
185032122 RAN25 SB2 HS RL34 AC 2:1 ZL334AC2:1 R1251204
182032131 na na na R3241305
182032132 na na na R3241306

Poggi 5033
STAINLESS STEEL Right Angle Gearbox, three 25mm shafts. 1/2, 1/2, and 1/3 ratios.
Codice Description D1 or D2 Hp* Torq in-lb
185033111 5033 R 1:1 D.1/2 D.1/2 11.19 195/shaft
185033121 5033 R 1:2 D.1/2 D.1/2 5.17 195/shaft
182033131 2033 R 1:3 D.1/2 D.1/2 2.54 123
a
a a a a a
a a a a a
a a a a a
Poggi Bonfiglioli Tramec STM Chiaravalli
185033111 RAN25 DA1 HS RL34 BC 1:1 ZL334BC1:1 R1251105
185033121 RAN25 DA2 HS RL34 BC 1:1 ZL334BC1:2 R1251206
