EP Series Planetary Precision Servo Reducer

Tramec NEMA Servo

NEMA & IEC InputsTramec EP Planetary Reducer

NEMA Planetary

Tramec EP Planetary Reducer offers a fantastic combination of performance and value for many precision applications requiring <10 Arc Min. backlash in a compact high torque high performance gearhead for a price upto 50% lower than super precision planetary riduttori.  Excellent for Servo & Stepper applications, and available in NEMA or IEC Input.

  • Machine Tools
  • Wood working equipment
  • Transfer machines
  • Print & Bindery Equipment
  • Packaging Machinery
  • High Speed Manufacturing Equipment
  • Robotics
  • Silk Screen Process Machinery
  • Micro-Chip pick & place systems.
  • Aerospace & Defense

Tramec Gear

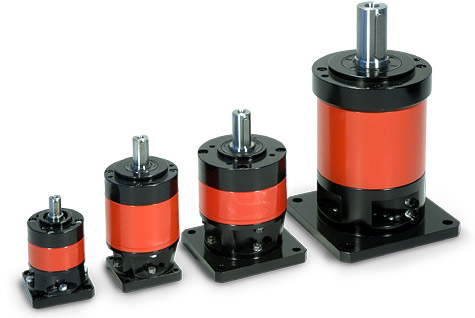

EP is available in 5 sizes (055, 075, 90, 120, and 155), 1 or 2 reduction stages, numerous output & input configurations to suit nearly every need.  Modular design assures fast delivery for 1 piece or many.

  • Housing: Nitrided Steel for a strong, long, corrosion resistant life.
  • Flanges: Input & Output flanges of high strength aluminum alloy.
  • Shaft: Hardened, Tempered, & Ground Steel.
  • Gears:  Case Carborized, quenched, and ground steel.
  • Bearings: Precision Manufactured of 52100 Vacuum Degassed Steels.
  • Tested for Noise, backlash, fit, and finish 100% S.P.C. ISO 9002.
  • 106 to 4160 in-lbs output torque (T2N).
  • i = 3 to 100/1
  • <8 arc min 3 to 10/1, ,10 arc min 9 to 100/1 ratios.
a Documentation EP Series

Click Catalog Selection for PDF

 > Designation PDF File 79 KB
>          >          >          >          >        >        >        >        >      >      >      >      >      >      >   >   >   >   >   >   >   >   >   > > > > > > > > > > > >>>>>>> > > > > > > >   >   >   >   >   >   >   >      >      >      >      >        >        >        >        >        >          >          >          >          >               >               >               >                    >  > Performance & Technical Specifications PDF File 119 KB

SERVICE LINKS

 > Radial & Axial Loads, Lubrication PDF File 81 KB

Select & Download CAD

 > Moments of Inertia PDF File 83 KB



 > Assembling Motor to Reducer PDF File

Call TVT Engineer

 > Engineering Considerations PDF File 188 KB

E-Mail TVT Engineer

  231 KB
a  > EP Series Catalog (All of Above) PDF File 869 KB
